C2050 Double Pitch Conveyor Chain One And One Quarter Inch Pitch Interchange To ANSI C2050 And BS ISO C210A PHCC2050 Durable High Strength Alloy Steel With Master Link Ten Feet Plus For Quick On Site Assembly And Minimal Downtime

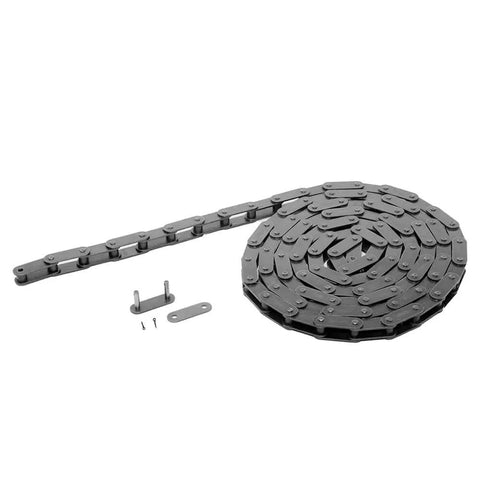

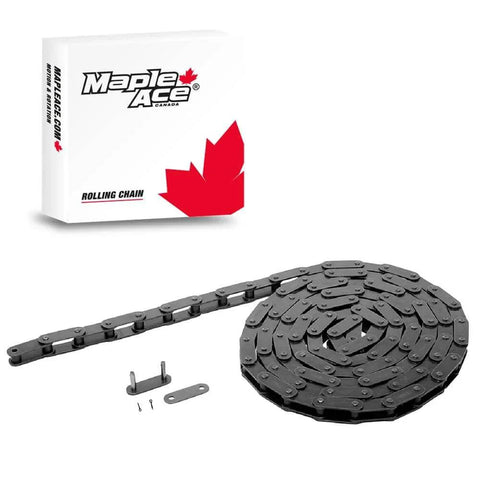

C2050 Double-Pitch Conveyor Chain 10 ft with Master Link
✔️ C2050 double-pitch chain, 1.25 in pitch, 10 ft length, master link

The C2050 Double Pitch Conveyor Chain is a heavy-duty link chain used in industrial conveyors, packaging lines, and material handling systems. It features a 1-1/4 inch pitch and is designed for long center-distance drives and low-speed, moderate-load applications. This package includes a 10 ft chain with a master link, ready to install.

✅ Pitch: 31.75 mm (1.25 in)
✅ Length: 10 ft (3.05 m)
✅ Single strand; ANSI C2050 / BS/ISO C210A compatible
✅ Roller diameter: 10.16 mm (0.40 in)
✅ Width between inner plates: 9.4 mm (0.37 in)
✅ Pin diameter: 5.08 mm (0.20 in)
✅ Pin length L: 20.7 mm (0.82 in)
✅ Pin length Lc: 22.2 mm (0.88 in)
✅ Plate height: 15 mm (0.59 in)
✅ Plate thickness: 2.03 mm (0.08 in)
✅ Tensile strength min: 22.2 kN
✅ Average tensile strength: 28.1 kN
✅ Weight: 0.780 kg/m (0.52 lbs/ft)
✅ Material: Carbon/Alloy Steel

The Maple Ace C2050 double-pitch conveyor chain is designed for long center-distance drives in industrial environments like factories, warehouses, and processing plants. It Interchanges with ANSI C2050 and BS/ISO C210A standards and ships in a 10 ft length with a connecting master link for quick setup.

✅ Pitch and size tuned for long-center conveyors
✅ Good for low-speed, moderate-load applications
✅ Compatible with ANSI C2050 and BS/ISO C210A standards
✅ Shot-peened, pre-loaded, and pre-lubricated for longer life

💡 What is a double pitch conveyor chain and where is it typically used? This handy chain is designed for longer center distances and heavy-duty conveyors. - Used in manufacturing, packaging lines, and material handling - Built to meet ANSI C2050 and BS/ISO C210A standards - Provides higher tensile strength and longer wear life - Ideal for low-speed, moderate-load conveyors with long center distances
