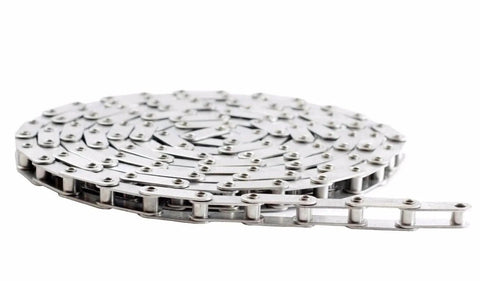

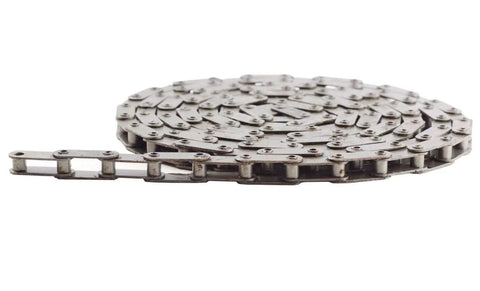

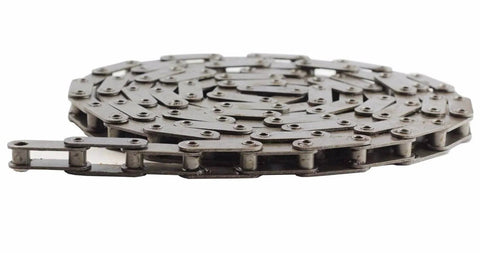

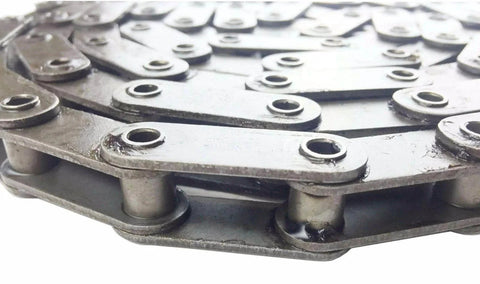

C2050H HPSS Heavy Duty Hollow Pin Stainless Steel Conveyor Roller Chain Ten Feet With One Connecting Link Premium 304 Stainless Steel One And A Quarter Inch Pitch Ideal For Medical Pharmaceutical Food Processing And Heavy Duty Industrial Applications

Heavy-Duty Hollow Pin Stainless Conveyor Chain 10 ft
✔️ Pitch 1.250 in, 10 ft length, 304 stainless, 1 CL

Premium 304 stainless steel heavy-duty hollow-pin conveyor chain built for harsh environments. This chain is commonly used in food processing, pharmaceutical, marine, and other high-humidity applications where corrosion resistance and long life matter. It is designed to drive conveyors and material handling systems with reliable performance.

Dimension	Value
Pitch	1.250 in
Roller Diameter	0.400 in
Width Between Inner Plates	0.370 in
Pin Diameter	0.284 in
Pin Length L Max	0.807 in
Pin Length Lc Max	0.858 in
Inner Plate Depth	0.591 in
Plate Thickness	0.080 in
Length	10 feet
Weight Per Foot	0.509 lbs

Model: ANSI C2050H-HPSS. Materials and processing emphasize durability and long life, with heat-treated rolls and precision components to handle tough industrial runs.

✅ Pitch Size: 1.250 in
✅ Roller Diameter: 0.400 in
✅ Width Between Inner Plates: 0.370 in
✅ Pin Diameter: 0.284 in
✅ Pin Length L Max: 0.807 in
✅ Pin Length Lc Max: 0.858 in
✅ Inner Plate Depth: 0.591 in
✅ Plate Thickness: 0.080 in
✅ Length: 10 Feet
✅ Weight Per Foot: 0.509 lbs
✅ Material: 304 Stainless Steel
✅ Heat-treated, preloaded and pre-lubricated for wear life
✅ Certifications: ISO 9001:2000 QM, ISO 14001, ISO/TS 16949

💡 What is a heavy-duty hollow-pin stainless steel conveyor chain used for and why choose it?

A handy overview explains why this kind of chain stands up to harsh duty in tough environments.

- Used in food processing and pharmaceutical lines to move products reliably
- Resists corrosion in marine and high-humidity settings
- Preloaded and heat-treated for long wear life and steady performance
- Works with standard sprockets and offers consistent tension over time
