Cabinet Door Hinges Set Folding Lift up Top Table Vertical Swing Lift Up Stay Pneumatic Arm Kitchen Mechanism Hinges Durable Silent Silver

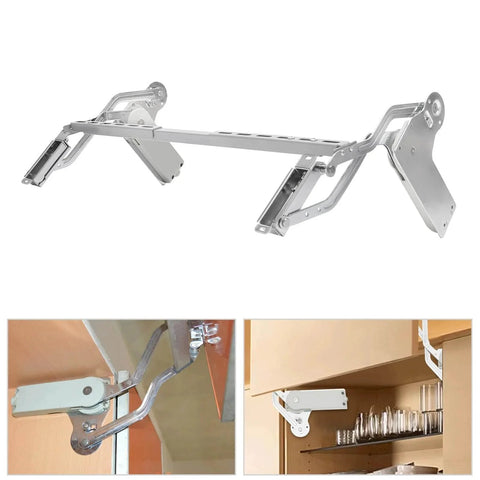

Hydraulic Lift-Up Cabinet Door Hinge, single unit for smooth, quiet operation
✔️ Load 3.5-4 kg; min cabinet 355 mm (13.98 in); width 600-900 mm (23.62-35.43 in); silver

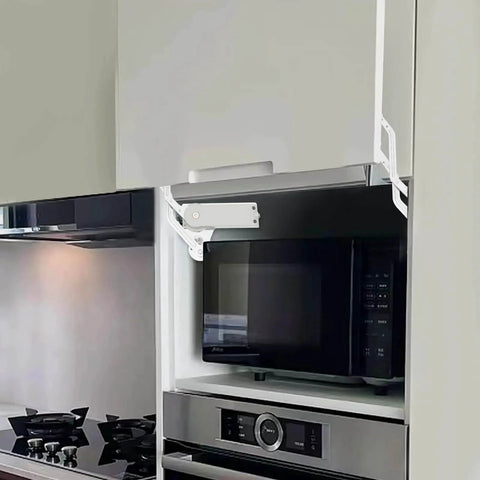

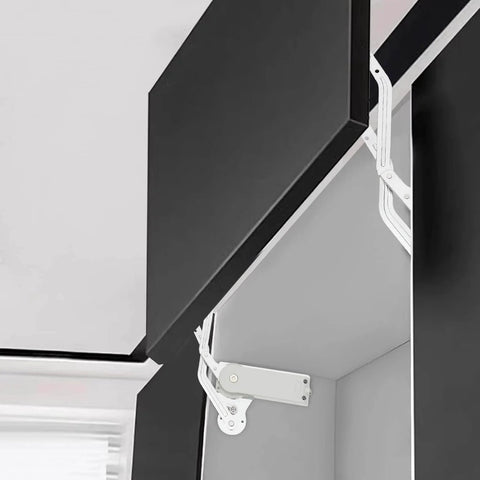

This hydraulic buffer cabinet door hinge is designed for top-lift doors on kitchen cabinets, bookshelves, and panel doors. It provides smooth soft-close action, adjustable closing force, and easy installation, making it a handy upgrade for any cabinet project.

✅ Load bearing capacity: 3.5-4 kg (7.72-8.82 lb)
✅ Minimum cabinet size: 355 mm (13.98 in)
✅ Cabinet width range: 600-900 mm (23.62-35.43 in)

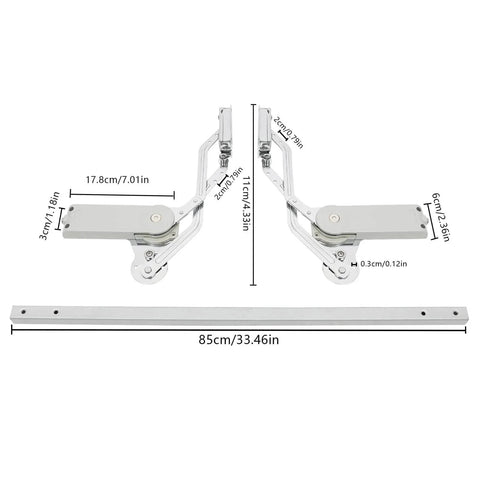

✅ Arm length: 178 mm (7.01 in)
✅ Arm width: 60 mm (2.36 in)
✅ Distance between arm holes: 30 mm (1.18 in)
✅ Connection head height: 110 mm (4.33 in)
✅ Distance between support screw holes: 20 mm (0.79 in)
✅ Circular hole diameter: 3 mm (0.12 in)
✅ Aluminum balance bar length: 850 mm (33.46 in)
✅ Package size: 440 mm × 200 mm × 50 mm (17.32 in × 7.87 in × 1.97 in)
✅ Net weight: 2.3 kg (5.07 lb); Gross weight: 2.5 kg (5.51 lb)

💡 What is a hydraulic buffer cabinet door hinge used for in kitchen cabinets?

A handy overview for handy folks looking to add soft-close lift functionality.

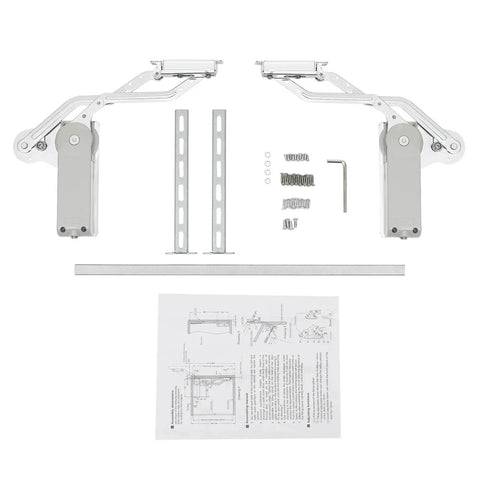

- Handy for top-lift doors on kitchen cabinets, bookshelves, and panels - Provides hydraulic damping for smooth, quiet closing - Handles loads up to 3.5-4 kg (7.72-8.82 lb) per hinge - Includes installation hardware and clear English manual
