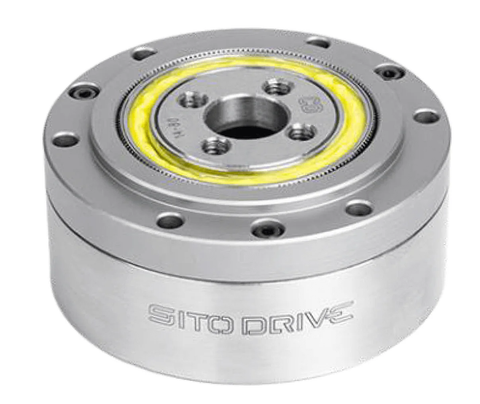

CD-14 Harmonic Gear Reducer 100:1

✔️ Compact Harmonic Gear for Accurate Motion Control

The CD-14 100:1 harmonic gear reducer is built for compact systems that require higher torque and precise low-speed motion. It is often used in robotics and servo-controlled mechanisms.

✅ Gear ratio: 100:1

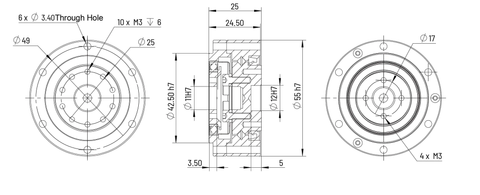

✅ Outer diameter: Φ55mm
✅ Rated torque at 2000 rpm: 5.4 Nm
✅ Limit for repeated peak torque: 19 Nm
✅ Limit for average torque: 7.7 Nm
✅ Limit for momentary peak torque: 31 Nm
✅ Maximum input speed: 8500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.021 x10^-4 kgm2
✅ Backlash: ≤10 arcsec

💡 When is a 100:1 harmonic gear reducer the right choice?
High reduction ratios are used when stronger torque and fine positioning are required.

- Improves torque density
- Enhances positioning accuracy
- Keeps motion steady under load

This 100:1 CD-14 reducer delivers reliable performance in compact motion systems.
