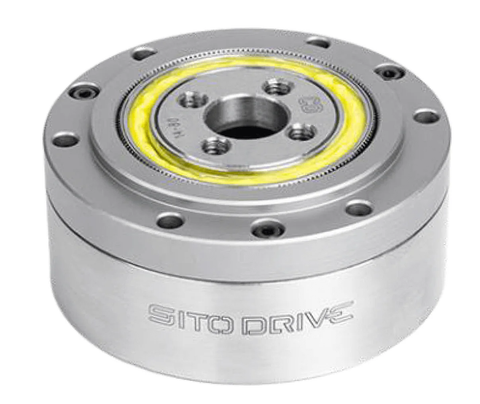

CD-14 Harmonic Gear Reducer 30:1

✔️ Compact Harmonic Gear for Accurate Motion Control

The CD-14 30:1 strain wave gear reducer is a handy solution for compact motion systems that need steady torque and smooth positioning. It is commonly used in robotics, small automation units, and servo-driven assemblies.

✅ Gear ratio: 30:1

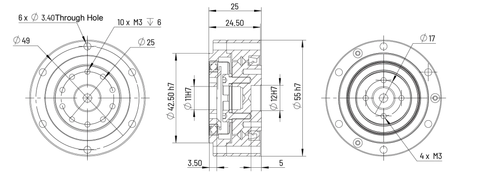

✅ Outer diameter: Φ55mm
✅ Rated torque at 2000 rpm: 2.2 Nm
✅ Limit for repeated peak torque: 10.2 Nm
✅ Limit for average torque: 2.88 Nm
✅ Limit for momentary peak torque: 14.4 Nm
✅ Maximum input speed: 8500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.021 x10^-4 kgm2
✅ Backlash: ≤20 arcsec

💡 What is a strain wave gear reducer commonly used for?
Strain wave gear reducers are designed for applications that need compact size with accurate motion control.

- Helps maintain smooth low-speed motion
- Reduces backlash for better positioning
- Supports stable torque in small drive systems

This 30:1 CD-14 reducer delivers clean and controlled motion in tight spaces.
