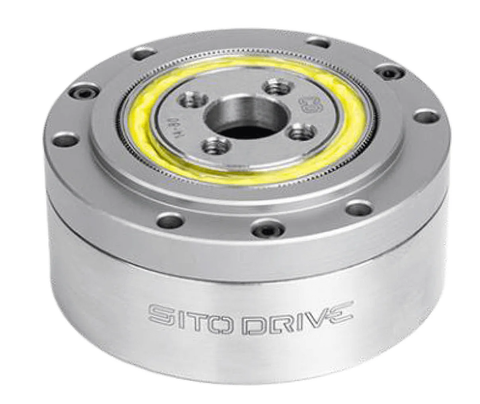

CD-14 Harmonic Gear Reducer 50:1

✔️ Compact Harmonic Gear for Accurate Motion Control

The CD-14 50:1 harmonic gear reducer is used in precision motion setups where higher reduction improves control accuracy. It fits well in robotic joints and compact automation equipment.

✅ Gear ratio: 50:1

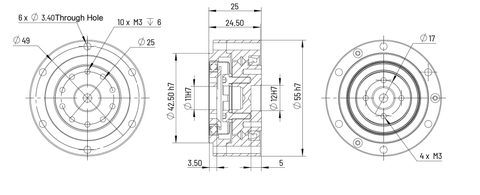

✅ Outer diameter: Φ55mm
✅ Rated torque at 2000 rpm: 3.7 Nm
✅ Limit for repeated peak torque: 12 Nm
✅ Limit for average torque: 4.8 Nm
✅ Limit for momentary peak torque: 24 Nm
✅ Maximum input speed: 8500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.021 x10^-4 kgm2
✅ Backlash: ≤20 arcsec

💡 Why choose a 50:1 harmonic drive gear reducer?
Mid-range ratios offer a balance between torque output and motion resolution.

- Improves positioning accuracy
- Keeps motion smooth at low speed
- Works well with servo motors

This 50:1 CD-14 reducer is a solid option for controlled motion systems.
