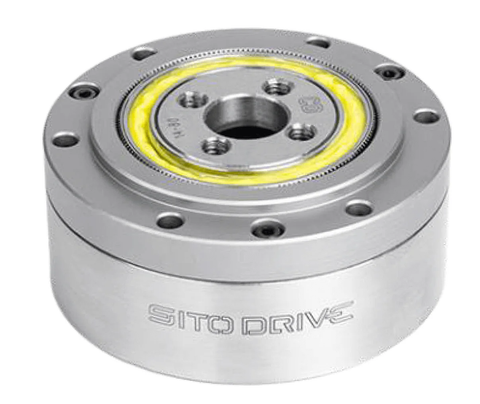

CD-17 Harmonic Gear Reducer 100:1

✔️ Compact Harmonic Gear for Accurate Motion Control

The CD-17 100:1 strain wave gear reducer is built for compact applications that demand higher torque and precise positioning. It is commonly used in robotics, automation assemblies, and servo-driven motion systems.

✅ Gear ratio: 100:1

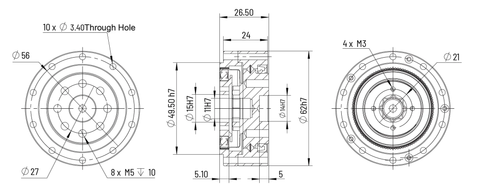

✅ Outer diameter: Φ62mm
✅ Rated torque at 2000 rpm: 16 Nm
✅ Limit for repeated peak torque: 37 Nm
✅ Limit for average torque: 27 Nm
✅ Limit for momentary peak torque: 55 Nm
✅ Maximum input speed: 7300 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.054 x10^-4 kgm2
✅ Backlash: ≤10 arcsec

💡 When is a 100:1 harmonic gear reducer the right choice?
High reduction ratios are used when torque density and motion accuracy are critical.

- Increases torque output
- Improves low-speed control
- Maintains stable and repeatable motion

This 100:1 CD-17 reducer delivers controlled performance in tight installation spaces.
