CDP3455 TEFC DC Motor 1 HP 1750 RPM 56C Frame 3435P F1 Mount 180V Armature & Field Insulation Class F Sealed Ball Bearing Constant Torque Variable Speed

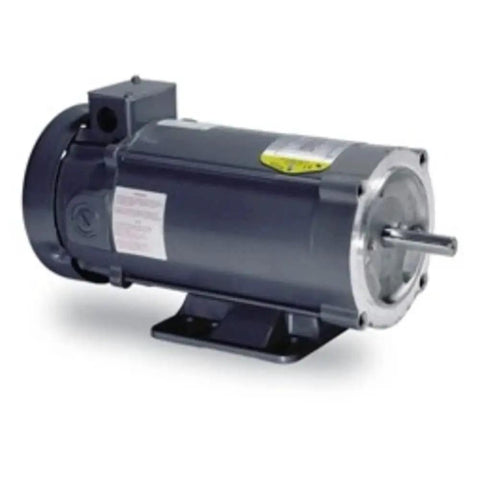

TEFC DC motor 1 hp 1750 RPM, 56C frame, model CDP3455
✔️ Single unit, 1 HP, 1750 RPM, 56C frame, 180V armature & field, TEFC

This 1 HP TEFC DC motor is a single industrial unit used on conveyors, mixers, packaging machinery and other variable-speed, constant-torque applications.

✅ Horsepower: 1.00 HP, 1750 RPM
✅ Armature Voltage: 180 V, Field Voltage: 180 V
✅ Frame: 56C, Type: 3435P, Mounting: F1, Base: RG
✅ Enclosure: TEFC, Insulation Class: F
✅ Bearings: sealed ball bearing 6203 DE / 6203 ODE
✅ Specs: Electrical 34WG3865, Mechanical 34LY5990, Release 15-05-2017

💡 Why choose sealed ball bearings for long-run industrial DC motors? Sealed ball bearings keep lubrication in and contaminants out, cutting downtime and maintenance on continuous-duty equipment. Here’s why they’re handy and effective: - Improved contamination protection for longer bearing life and reduced wear, ideal for conveyor and mixer use. - Lower maintenance and less frequent relubrication, supporting constant torque variable speed drives. - Compatible with common bearing sizes like 6203 for straightforward replacement and retrofit.
