CF20-1 47mm Cam Follower Needle Roller Bearing
CF20-1 47mm Cam Follower Needle Roller Bearing
VXB

CF20-1 47mm Cam Follower Needle Roller Bearing


$76.13 CAD $102.76 CADyou save $26.63 CAD
SKU: CF20-1
UPC: 00193019177587






CF20-1 47mm Cam Follower
Needle Roller Bearing
One Bearing


CF20-1 47mm Cam Follower Needle Roller Bearing, inner diameter is 20mm, outer diameter is 47mm and the length is 66mm.Thread standard is M20x1.5, the size of this bearing is 20 x 47 x 66 mm.

  • CF20-1 Bearing
  • Cam Follower Needle Roller Bearing
  • Size: 20mm x 47mm x 66mm
  • Quantity: 1 Bearing
  • Dynamic Load Rating: 20692 N
  • Static Load Rating: 34617.5 N
  • Equal: MCFR-47-X

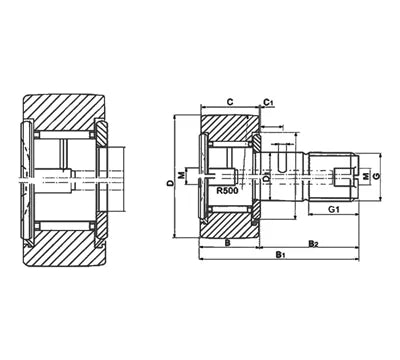

Dimensions (mm)
d1 D B B1 B2 B3 G G1 C C1
20 47 21.6 66.1 40.5 9 M20x1.5 21 24 0.8
