CF24-1 72mm Cam Follower Needle Roller Bearing
UPC: 00193019177648
CF24-1 Cam Follower Bearing
✔️ 72mm OD Needle Roller - M24x1.5 Thread - Heavy Duty
The CF24-1 cam follower is made to handle serious loads and rough conditions in automation lines, cam systems, and industrial machinery. With needle rollers inside, this bearing spreads pressure across a wider area for longer service life, even under shock or impact.
✅ Needle roller cam follower with stud
✅ Dimensions: 24mm ID x 72mm OD x 80mm overall length
✅ Thread size: M24 x 1.5 for easy mounting
✅ Built from hardened chrome steel
✅ Dynamic Load Rating: 30,500 N
✅ Static Load Rating: 52,661 N
✅ Quantity: 1 piece
☑️ Equivalent to: MCFR-72-X

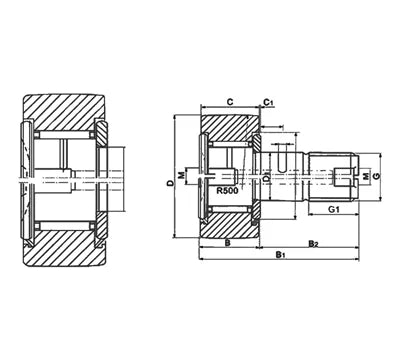

Dimensions Table (mm):
| d1 | D | B | B1 | B2 | B3 | G | G1 | C | C1 |
|---|---|---|---|---|---|---|---|---|---|
| 24 | 72 | 30.6 | 80.1 | 49.5 | 11 | M24x1.5 | 25 | 29 | 0.8 |
💡 Why use a needle roller cam follower for heavy machinery?
Cam followers with needle rollers are built to last under pressure.
-
Spread force evenly across the rolling elements
-
Reduce localized wear and extend bearing life
-
Withstand shock loads and frequent motion
-
Perfect for cams, conveyors, and sliding systems
If you're running serious equipment and want strength without the stress, the CF24-1 has your back. Drop it in your setup and let it take the load like a champ.
