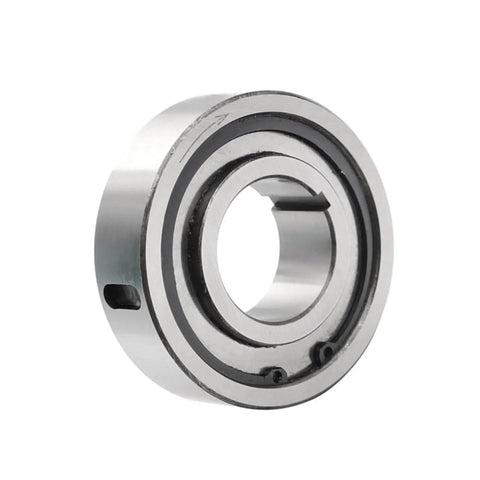

CK-A3072 one-way clutch bearing 30x72x23mm
$83.74 CAD
$152.28 CADyou save $68.54 CAD
SKU: CK-A3072
UPC: 00193019414477
UPC: 00193019414477
CK-A3072, CSK3072
Type / Design
-
Sprag-type, one-way (overrunning) clutch bearing.
-
Non-bearing-supported: it does not support most radial or axial loads itself.
-
Requires keyways on both the inner race (shaft) and outer race (housing).
-
Delivered greased.
Material
-
Constructed from GCr15 chrome-steel in typical manufacturing.
Dimensions & Performance
Here are the main specs:
| Parameter | Value |
|---|---|
| Inner Diameter (d) | 30 mm |
| Outer Diameter (D) | 72 mm |
| Width / Thickness (B) | ~24 mm |
Applications
-
Used in industrial machinery: conveyors, packaging systems, paper-making, chemical equipment, etc.
-
Suitable for backstop or overrunning use cases where you need rotation one way and locking in the other.
