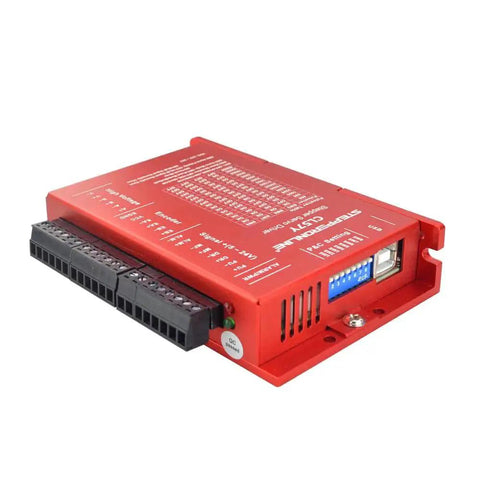

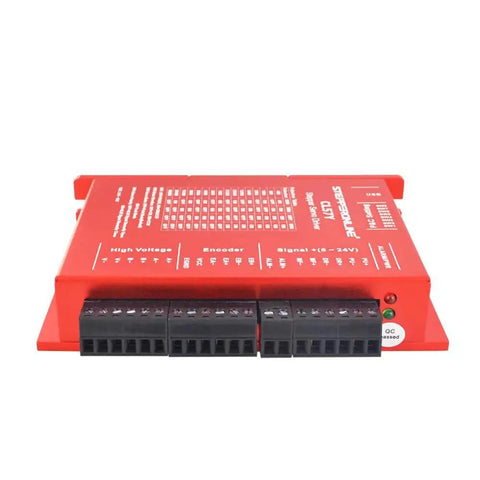

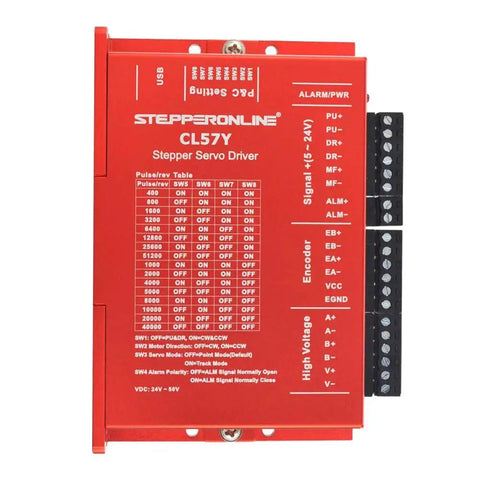

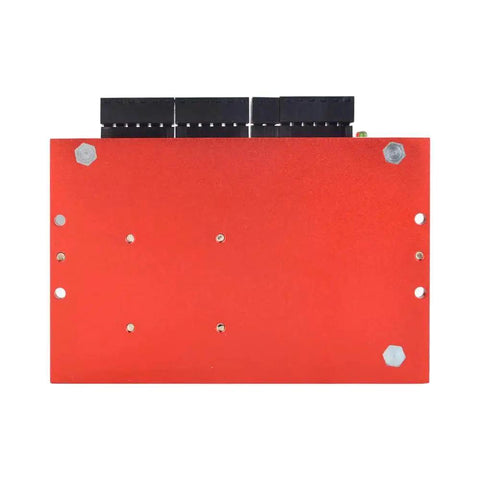

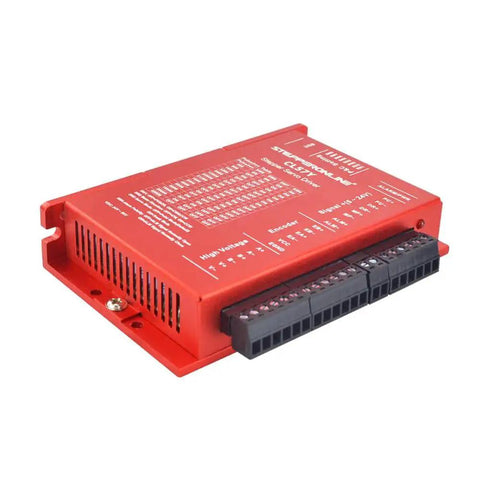

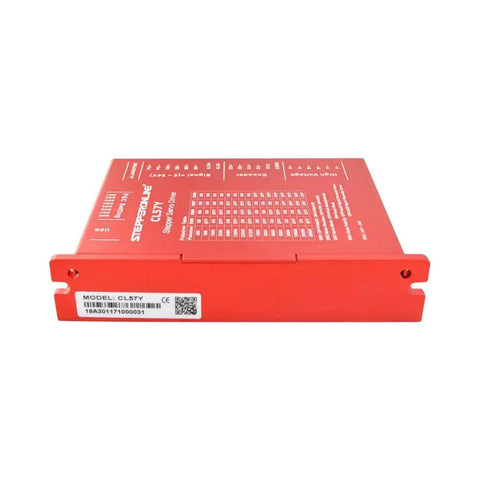

Closed Loop Stepper Driver Y Series For Nema 17 23 24 Motors 0-7.0A 24-50V DC With 32-Bit DSP Control, High Precision Torque, Smooth Motion, Easy Setup, And Safety Features For CNC Machining, 3D Printing, Robotics, And Automation

Advanced Closed-Loop Stepper Driver for NEMA 17/23/24 Motors
✔️ 0-7A peak, 24-50V DC, single unit, 32-bit DSP control, 200kHz

The Y Series closed-loop stepper driver is designed to power NEMA 17, 23, and 24 motors with precision and safety in CNC machining, 3D printing, robotics, and automation projects. It emphasizes intelligent current management to minimize heat and extend motor life while providing robust monitoring and alarm signals for reliable operation.

✅ Output Peak Current: 0-7A (0-5 RMS)
✅ Input Voltage: DC 24-50V (Typical 36V)
✅ Pulse Input Frequency: 0-200kHz; Pulse Width 2.5μS
✅ Torque and speed: up to 3000 rpm with minimal attenuation
✅ Intelligent current regulation reduces heat and vibration by ~35%
✅ Built-in in-place and alarm outputs for easy monitoring
✅ Supports single/double pulse selection; default pulse+direction

💡 What is a handy reason to choose a closed-loop stepper driver for precision motion?

In short, closed-loop control keeps the motor on target by feeding back actual position in real time.

- Improves positioning accuracy in CNC, 3D printing, and robotics - Reduces heat, noise, and vibration through intelligent current management - Safer operation with built-in alarms and monitoring signals - Easy setup with 24-50V DC compatibility and 32-bit DSP control
