CM6 rod end bearing heim joint kit, 3/8 inch bore with 3/8-24 right hand male thread, forged steel body with hardened bearing ball, includes jam nuts for smooth motion in machinery, automotive and automation applications, 2 pcs

3/8 inch Right Hand Male Heim Joint Rod End Set
✔️ 3/8-24 Thread x 3/8 inch Bore Spherical Rod Ends with Jam Nuts 2 Pack

This 3/8 inch male heim joint set is built for compact linkages that need smooth articulation, solid alignment, and dependable load handling. It’s commonly used in machinery, automotive controls, and automation setups where precision movement and durability matter.

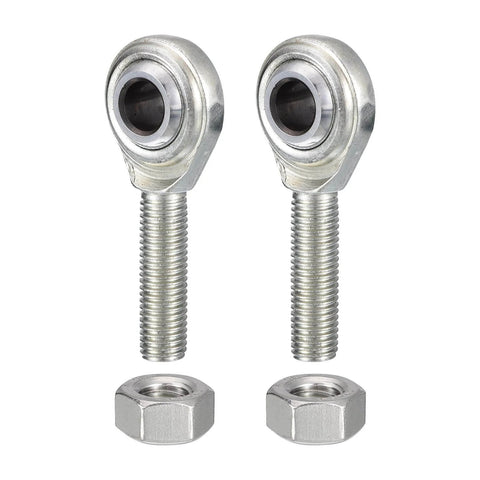

✅ Pack size: 2 right hand male rod end bearings with matching jam nuts
✅ Rod end bore: 3/8 inch
✅ Thread size: 3/8-24 right hand

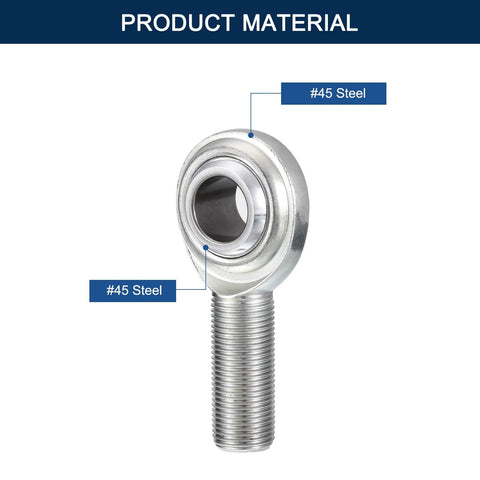

✅ Body material: Forged #45 steel
✅ Ball material: Hardened bearing steel
✅ Self-aligning spherical design for smooth pivoting
✅ Low noise operation with strong wear resistance
✅ Static load capacity: 22.542 kN
✅ Common uses: Hydraulic cylinders, machinery linkages, automotive controls, ATVs, CNC and automation equipment

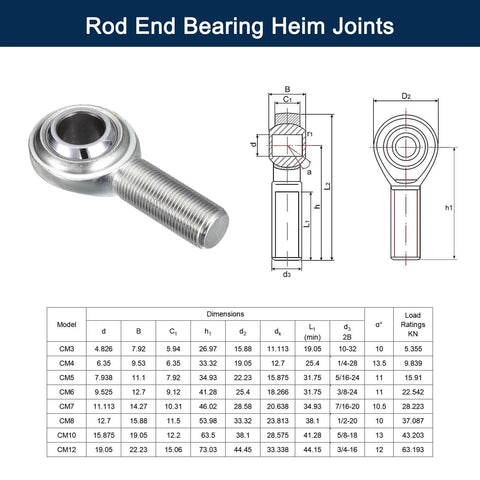

Dimensions

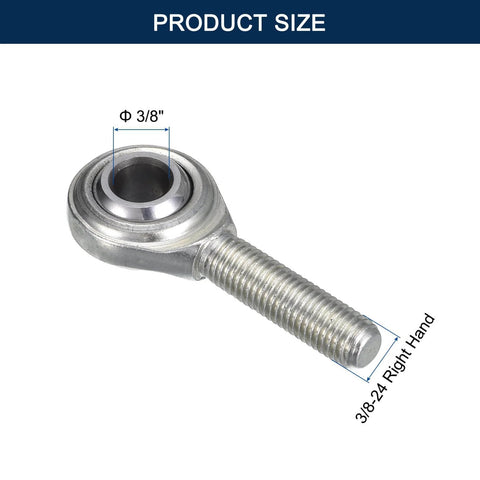

Bore diameter 3/8 inch
Thread size 3/8-24 RH
Maximum misalignment 11 degrees

💡 What is a 3/8-24 right hand male heim joint used for in motion control systems?
It allows precise articulation while keeping connected parts aligned under load.

• Male threaded shank makes installation simple in adjustable linkages

• Spherical bearing design handles angular movement without binding

• Forged steel construction supports repeated load and vibration

This heim joint set is a handy choice when you need smooth movement, compact sizing, and reliable performance in mechanical and vehicle linkage applications.
