CNC Linear Stage With 500mm Stroke Beefy Build For Precision RATTMMOTOR ZBX80 Cross Sliding Table Aluminum Alloy SFU1605 Ballscrew Nema23 57 Stepper Motor X Y Z Axis Motion Actuator For CNC Milling And Laser Engraving

Premium CNC Linear Stage, single unit, 500mm Stroke SFU1605
✔️ Stroke 500mm, travel 80kg load, aluminum base, SFU1605 screw

This CNC linear stage is a precision motion platform designed for accurate X, Y, and Z axis travel in milling and laser engraving setups. It pairs with a ZBX80 cross sliding table and features an SFU1605 ballscrew with a NEMA23 stepper to deliver repeatable, rigid motion, making it ideal for hobbyist workshops and professional shop floors alike.

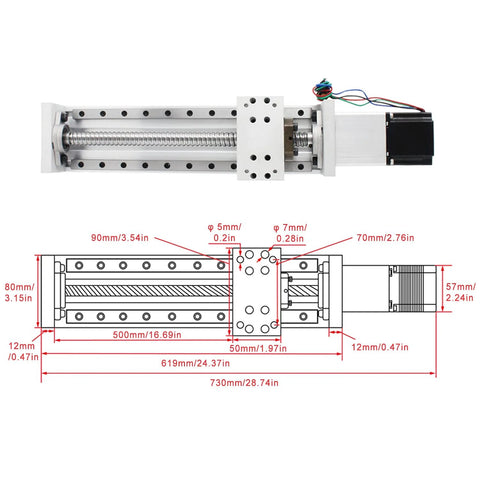

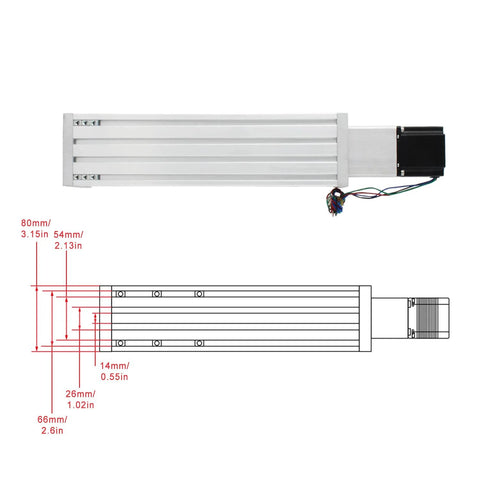

✅ ZBX80-500mm stroke; horizontal load up to 80 kg (176.37 lb); vertical 20 kg (44.09 lb); width 80 mm (3.15 in)

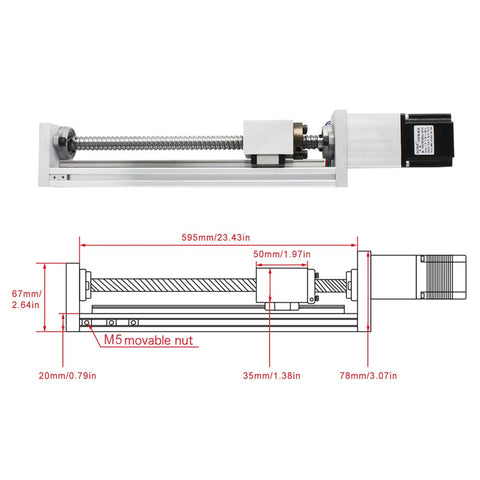

✅ Overall length including motor: 730 mm (28.74 in); base plate 619 mm (24.37 in)

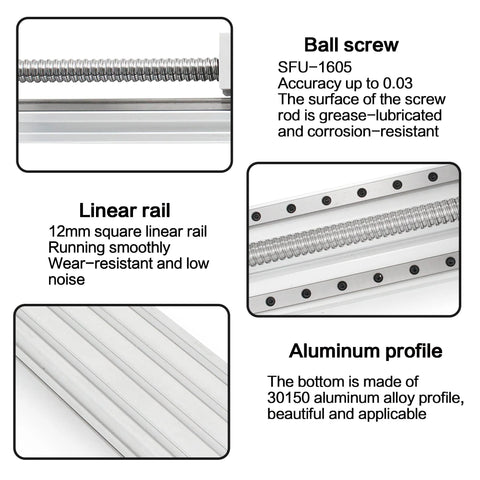

✅ High-precision SFU1605 ballscrew on bearing steel with chrome plating for hardness and load resistance

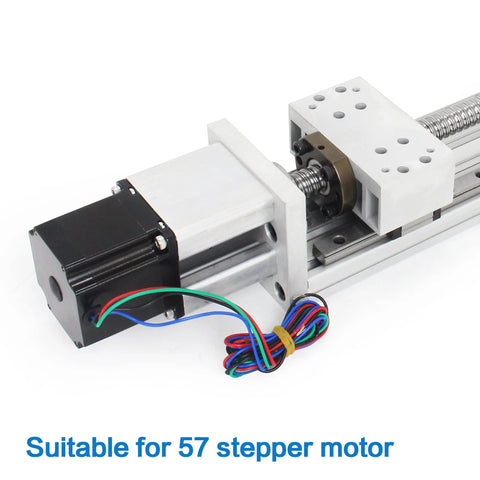

✅ Nema23 hybrid stepper motor: 57×57×56 mm; torque 1.2 N·m; 1.8° step; 3 A; 12–36 V

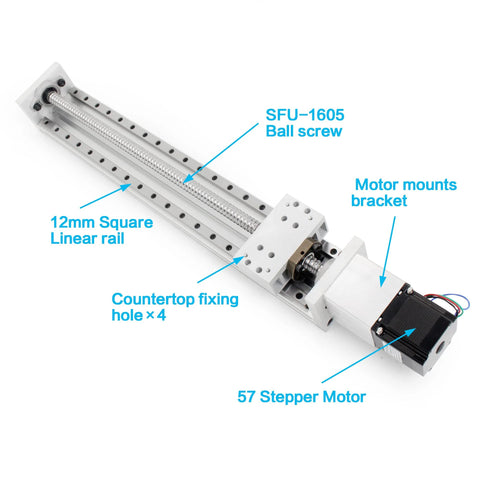

✅ Motor bracket included for coaxial alignment and longer life for screw and coupling
✅ Coupling uses Grade 9 bolts with tight tolerance (H7) for high concentricity and no slack

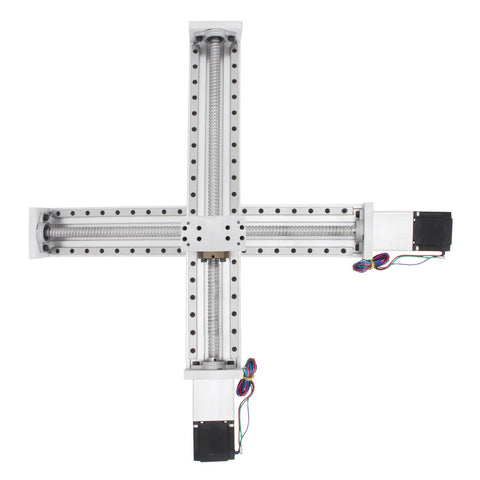

💡 What is a CNC linear stage used for in precision milling and engraving? This handy setup lets you position parts with high accuracy along X, Y, and Z axes for tight-tolerance work. - A handy option for precise X/Y/Z positioning in compact CNC rigs - Smooth, controlled travel with SFU1605 ballscrew and cross slide table - Easy integration with NEMA23 motor and standard motion controllers - Improves repeatability and stiffness for milling and engraving work
