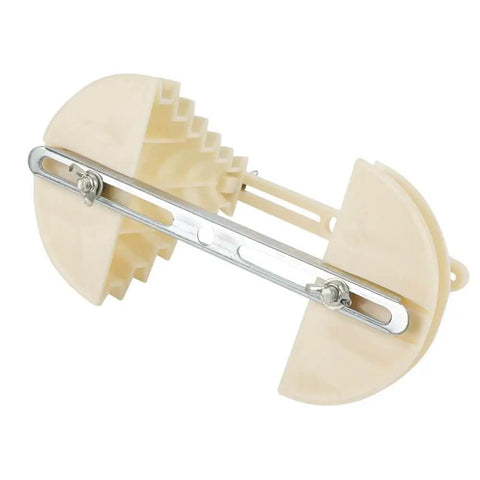

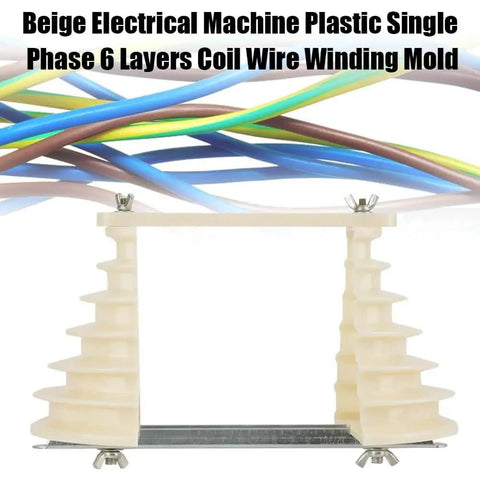

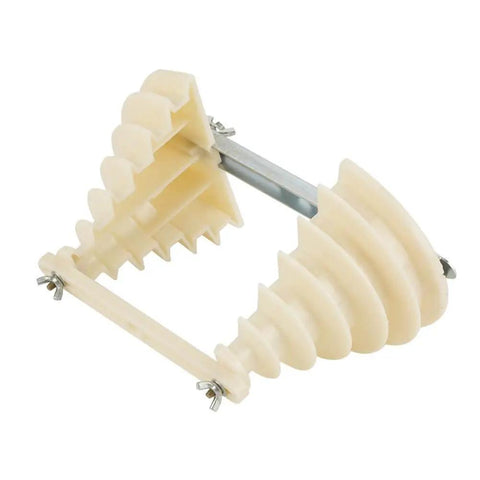

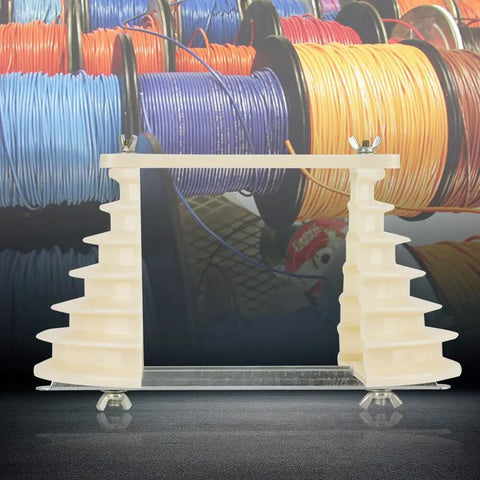

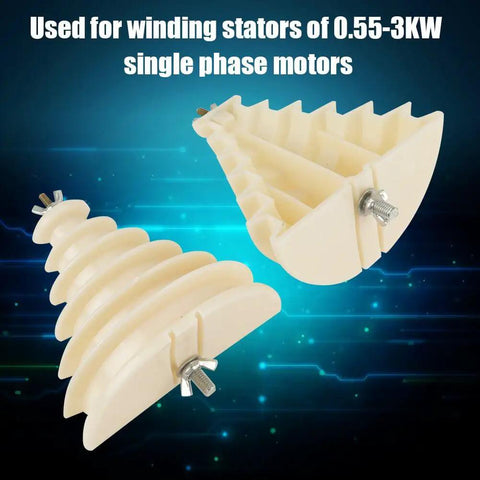

Coil Wire Winding Mold For Single Phase Motors And Home DIY Projects Beige Plastic Winding Tool With Six Layer Capacity For Stator Coils Concentric Winding Guide For Motor Repair And Maintenance

Beige 6-Layer Coil Winding Mold for 0.55-3KW Motors
✔️ Six-layer winding mold with 9mm slots, max 220mm diameter, base

This coil wire winding mold is a handy tool for motor repair and maintenance projects, especially for single-phase motors. It helps technicians wind stators with concentric coils in a stable, repeatable way.

✅ Material: Plastic, beige color
✅ Fit for: 0.55-3KW single-phase motors
✅ Layer count: 6 layers
✅ Slot width: 9mm / 0.35in
✅ Max adjustment diameter: 220mm / 8.66in
✅ Weight: 376g

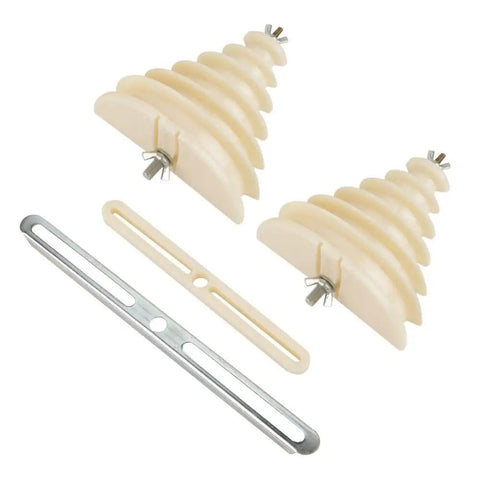

✅ Includes: 1x Coil Wire Winding Mold and 1x Metal Fixing Base

💡 What is a coil winding mold used for in motor repair?

This handy tool helps technicians wind stator coils neatly and accurately for single-phase motor repair and maintenance.

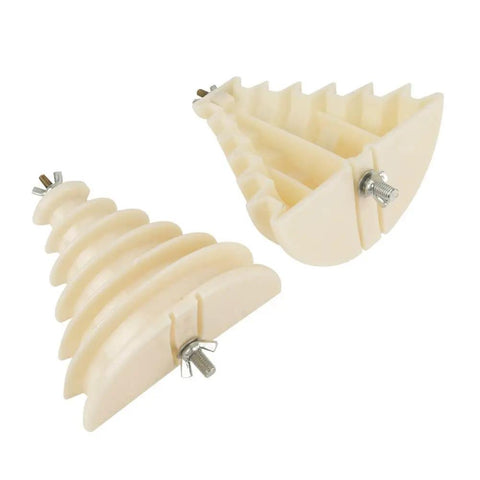

• Precise concentric winding with one side in each slot for matching stator slots
• Handy tool for winding 0.55-3KW single-phase motors without welding

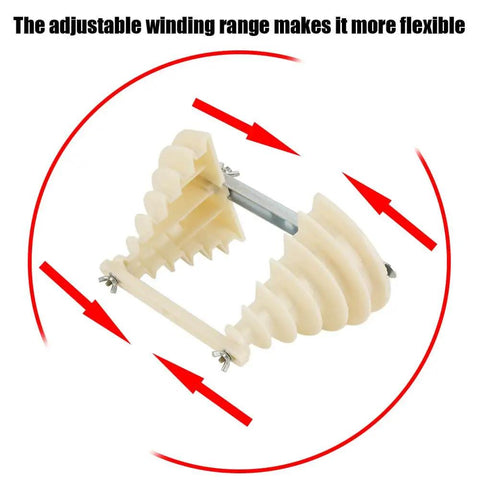

• Six-layer capacity with adjustable diameter up to 220mm for flexibility
• Includes a sturdy metal base for stable mounting during winding
