Concealed Hinge Jig With Quick Clamp And Dust Vacuum Adapter For 35mm Door Hinge Install Carbide Bit With Measuring Scale For Dual Depth Accuracy Cabinet Mounting Drill Guide For Precise Clean Pro Level Results

Concealed hinge jig with dust vacuum adapter for 35mm doors

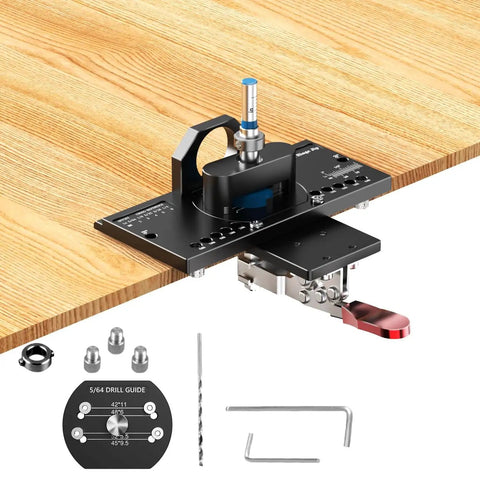

✔️ 1-pack, dual-depth carbide bit, quick clamp, 0-15 mm range

This pro-grade cabinet hinge jig guides 35 mm hinge cups with high accuracy, suited for kitchen, bath, and office cabinetry. It supports multiple hinge patterns and door thicknesses, delivering clean, repeatable installations.

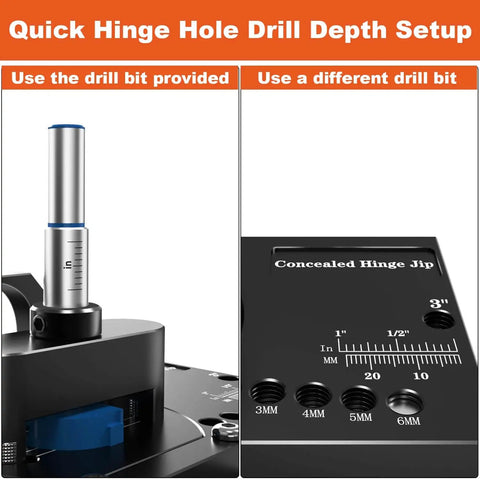

✅ Dual-depth carbide bit with measurement scale for 0-15 mm depth (0-0.59 in)

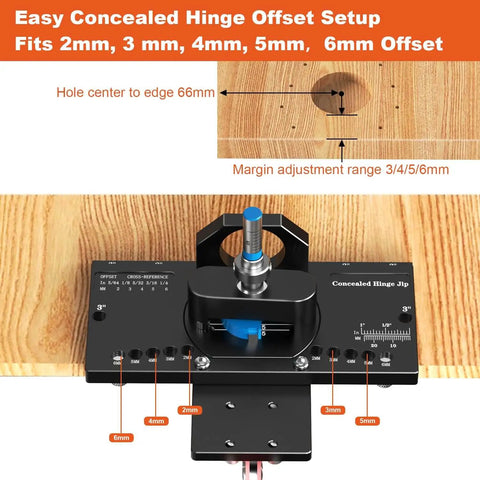

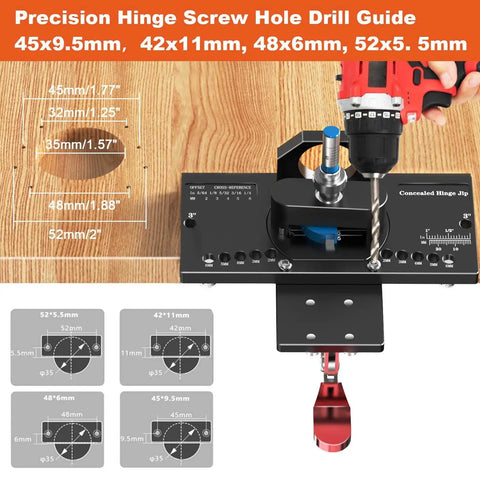

✅ Accepts 2-6 mm offsets and 4 screw patterns: 42×11 mm, 48×6 mm, 52×5.5 mm, 45×9.5 mm (1.65"×0.43", 1.89"×0.24", 2.05"×0.22", 1.77"×0.37")

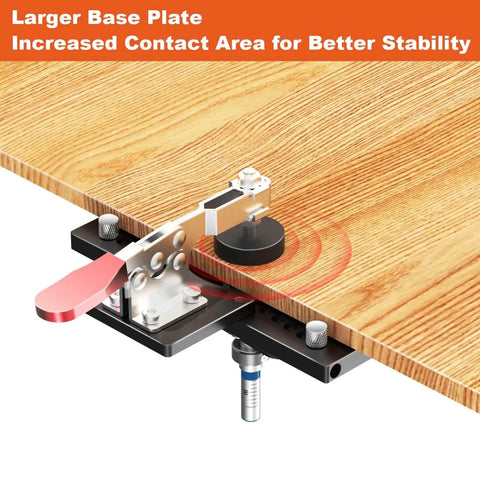

✅ Quick-release clamp for <3 seconds setup

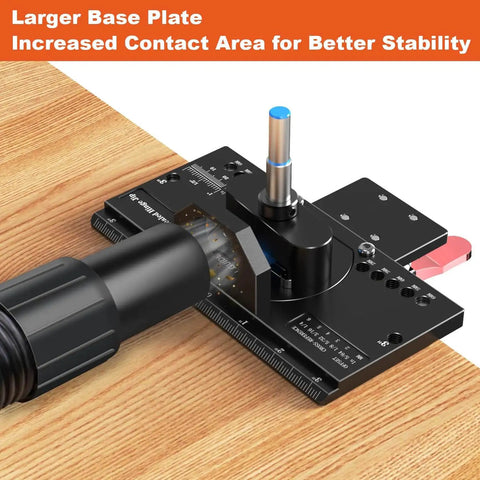

✅ Dust port for vacuum keeps work area clean during drilling

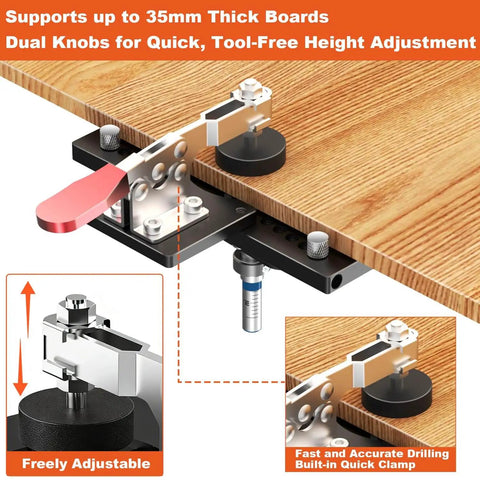

✅ Aircraft-grade metal construction; supports cabinet doors up to 35 mm thick

💡 What is a 35 mm concealed hinge jig used for in cabinet installation?

This handy tool helps with precise hinge cup depth and screw-pattern alignment.

- precise hinge cup depth control for consistent openings - matches common screw patterns (42×11, 48×6, 52×5.5, 45×9.5 mm) - dust-free drilling via integrated vacuum port - quick clamp for fast, repeatable setups
