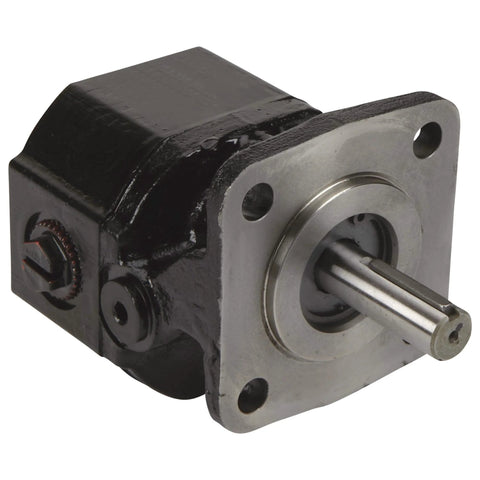

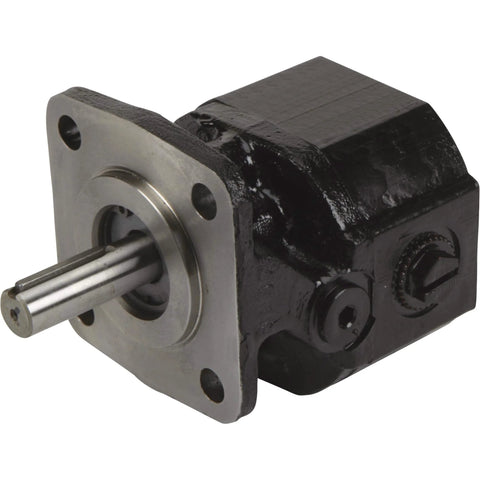

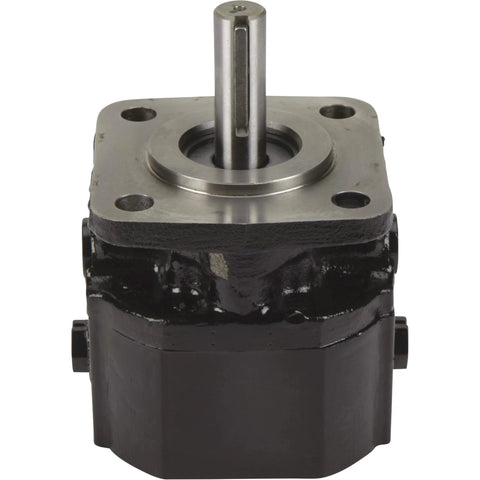

Concentric High Pressure Hydraulic Gear Pump - 0.388 Cu. in. Model Number G1224C5A300N00

Concentric High-Pressure Hydraulic Gear Pump - 0.388 cu in displacement, Model G1224C5A300N00 for heavy equipment and PTO-driven hydraulics
✔️ 0.388 cu in displacement; 3.0 GPM @1800 RPM; 6.0 GPM @3600 RPM; 1600 PSI cont./2500 PSI inter.; 4-bolt mount; CW/CCW to 4000 RPM; heavy-duty cast iron

Concentric High-Pressure Hydraulic Gear Pump G1224C5A300N00 is a rugged PTO-driven pump designed for mobile equipment, construction machinery, agricultural gear, machine tools, and mining setups. Its concentric gear design delivers reliable flow at high pressure, enabling steady hydraulic power in demanding environments.

✅ Displacement: 0.388 cu in (6.36 cm³) per revolution.
✅ Flow at 1800 RPM: 3.0 GPM; at 3600 RPM: 6.0 GPM.
✅ Maximum PSI: 1600 PSI continuous; 2500 PSI intermittent.
✅ Mounting & drive: Standard 4-bolt mount; pilot 1.78 in (45.2 mm) diameter; shaft 1/2 x 1-1/2 in (12.7 x 38.1 mm); 1/8 in square key.
✅ Rotation: Heavy-duty cast iron body; CW/CCW operation up to 4000 RPM.
✅ Drive options: PTO pump or belt/flexible coupling drive.
✅ Efficiency: Approximately 95% efficient.
✅ Applications: For mobile equipment, construction, agriculture, machine tools, material handling, and mining setups; similar to Parker D Series, Webster YB Series, Rexroth S12.
