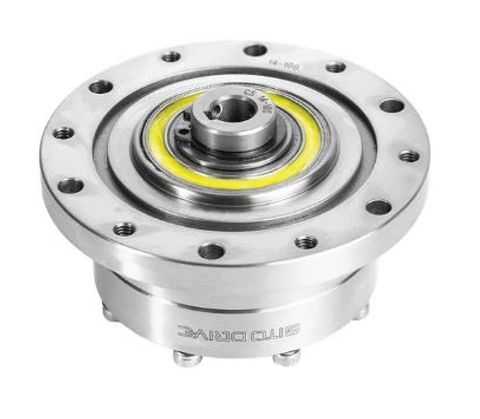

CS-14 Φ73mm Harmonic Drive Gear Ratio 50:1 - Strain Wave Gear Reducer

CS-14 Strain Wave Gear Reducer, Φ73mm Harmonic Drive Gear Ratio 50:1
✔️ High-Accuracy Harmonic Gear for Stable Torque Output

The CS-14 50:1 strain wave gear reducer is designed for applications that need higher torque density and consistent motion control in compact automation and robotic systems.

✅ Gear ratio: 50:1
✅ Outer diameter: Φ73mm
✅ Rated torque at 2000 rpm: 5.4 Nm
✅ Limit for repeated peak torque: 18 Nm
✅ Limit for average torque: 6.9 Nm
✅ Limit for momentary peak torque: 35 Nm
✅ Maximum input speed: 8500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤20 arcsec

💡 Why are harmonic gear reducers preferred for high reduction ratios?
Harmonic reducers allow high reduction ratios while keeping backlash low and motion smooth.

- Delivers controlled torque for servo-driven systems
- Maintains positioning accuracy during repeated cycles
- Fits well in compact machine layouts

This 50:1 CS-14 reducer is a solid option when smoother motion and higher reduction are needed.
