CS-14 Φ73mm Harmonic Drive Gear Ratio 80:1 - Strain Wave Gear Reducer

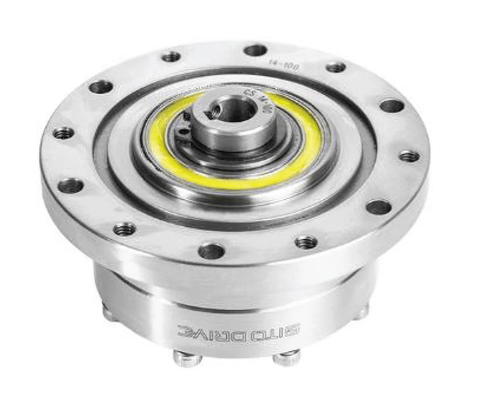

CS-14 Strain Wave Gear Reducer, Φ73mm Harmonic Drive Gear Ratio 80:1
✔️ High-Reduction Harmonic Gear for Precise Positioning

The CS-14 80:1 strain wave gear reducer is made for precision positioning systems that require higher torque output with steady, repeatable motion in automation and robotic assemblies.

✅ Gear ratio: 80:1

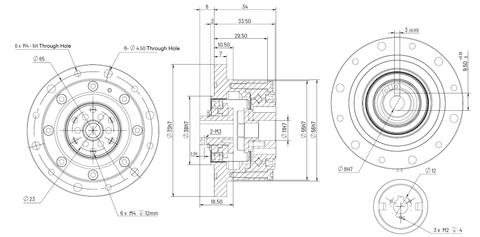

✅ Outer diameter: Φ73mm
✅ Rated torque at 2000 rpm: 7.8 Nm
✅ Limit for repeated peak torque: 23 Nm
✅ Limit for average torque: 9.5 Nm
✅ Limit for momentary peak torque: 47 Nm
✅ Maximum input speed: 8500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤10 arcsec

💡 What benefits do high-ratio harmonic drives offer in robotics?
Higher ratio harmonic drives improve torque control and fine positioning in demanding motion systems.

- Improves load handling without increasing gearbox size
- Reduces positioning error in precise motion paths
- Keeps system response smooth under varying loads

This 80:1 CS-14 harmonic reducer is handy for systems needing strong torque with tight control.
