CS-17 Φ79mm Harmonic Drive Gear Ratio 100:1 - Strain Wave Gear Reducer

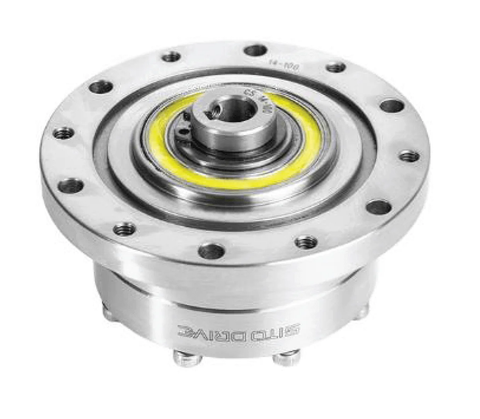

CS-17 Strain Wave Gear Reducer, Φ79mm Harmonic Drive Gear Ratio 100:1
✔️ High-Ratio Harmonic Gear for Accurate Motion Control

The CS-17 100:1 strain wave gear reducer is made for precision motion control applications that demand high torque output and very fine positioning accuracy.

✅ Gear ratio: 100:1

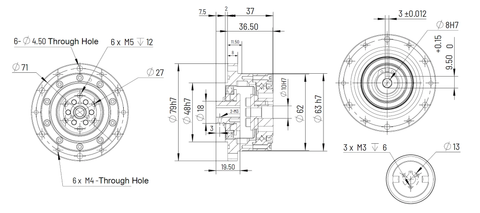

✅ Outer diameter: Φ79mm
✅ Rated torque at 2000 rpm: 24 Nm
✅ Limit for repeated peak torque: 54 Nm
✅ Limit for average torque: 39 Nm
✅ Limit for momentary peak torque: 108 Nm
✅ Maximum input speed: 7300 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤10 arcsec

💡 Why choose a 100:1 harmonic gear reducer for precision positioning?
High-ratio harmonic reducers allow fine control and strong torque delivery in compact designs.

- Improves positioning resolution in servo systems
- Handles higher torque loads with steady motion
- Keeps backlash low for repeatable accuracy

This 100:1 CS-17 reducer is a reliable choice for high-precision motion control setups.
