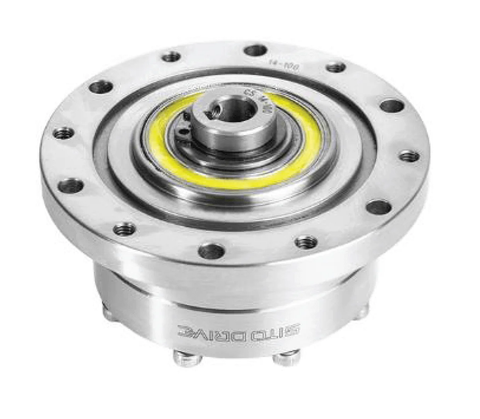

CS-20 Φ93mm Harmonic Drive Gear Ratio 100:1 - Strain Wave Gear Reducer

CS-20 Strain Wave Gear Reducer, Φ93mm Harmonic Drive Gear Ratio 100:1
✔️ High-Ratio Harmonic Gear for Accurate Motion Control

The CS-20 100:1 strain wave gear reducer is designed for applications that demand high torque density and very fine positioning accuracy.

✅ Gear ratio: 100:1

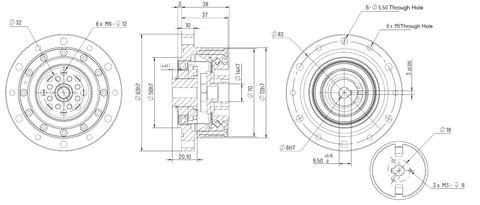

✅ Outer diameter: Φ93mm
✅ Rated torque at 2000 rpm: 40 Nm
✅ Limit for repeated peak torque: 82 Nm
✅ Limit for average torque: 49 Nm
✅ Limit for momentary peak torque: 147 Nm
✅ Maximum input speed: 6500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤10 arcsec

💡 Why choose a 100:1 harmonic gear reducer for motion control systems?
High-ratio harmonic reducers allow precise control with strong torque output.

- Improves positioning resolution in servo systems
- Handles higher loads with controlled motion
- Keeps backlash low for repeatable accuracy

This 100:1 CS-20 reducer is a dependable choice for high-precision motion control.
