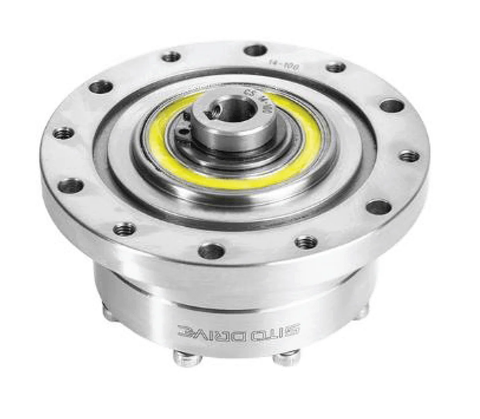

CS-20 Φ93mm Harmonic Drive Gear Ratio 80:1 - Strain Wave Gear Reducer

CS-20 Strain Wave Gear Reducer, Φ93mm Harmonic Drive Gear Ratio 80:1
✔️ High-Reduction Harmonic Gear for Precise Positioning

The CS-20 80:1 strain wave gear reducer is used in precision motion systems that need higher torque output with controlled, repeatable movement.

✅ Gear ratio: 80:1
✅ Outer diameter: Φ93mm
✅ Rated torque at 2000 rpm: 34 Nm
✅ Limit for repeated peak torque: 74 Nm
✅ Limit for average torque: 47 Nm
✅ Limit for momentary peak torque: 121 Nm
✅ Maximum input speed: 6500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤10 arcsec

💡 What benefits do high-ratio harmonic gear reducers provide in precision equipment?
Higher reduction ratios improve torque control and positioning accuracy.

- Supports heavier loads with steady response
- Reduces positioning error in fine movements
- Maintains smooth motion under varying loads

This 80:1 CS-20 reducer is a solid option for precision-driven machinery.
