CS-25 Φ107mm Harmonic Drive Gear Ratio 100:1 - Strain Wave Gear Reducer

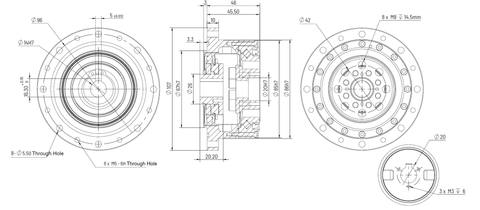

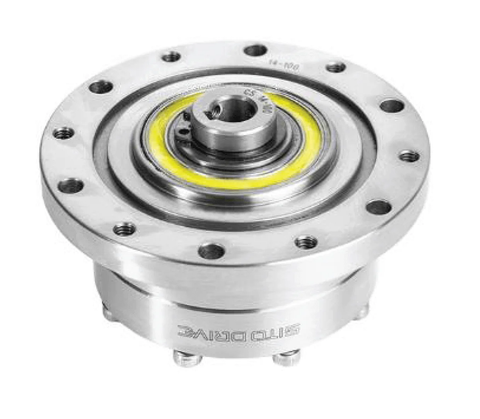

CS-25 Strain Wave Gear Reducer, Φ107mm Harmonic Drive Gear Ratio 100:1
✔️ Compact Harmonic Gear for Accurate Motion Control

The CS-25 100:1 harmonic gear reducer is built for systems that need strong torque output with fine positioning accuracy.

✅ Gear ratio: 100:1
✅ Outer diameter: Φ107mm
✅ Rated torque at 2000 rpm: 67 Nm
✅ Limit for repeated peak torque: 157 Nm
✅ Limit for average torque: 108 Nm
✅ Limit for momentary peak torque: 289 Nm
✅ Maximum input speed: 5600 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤10 arcsec

💡 What makes a 100:1 harmonic gear reducer useful in robotics?
A 100:1 ratio allows precise control while handling higher torque demands.

- Enhances joint accuracy in robotic arms
- Handles repetitive motion under load
- Keeps motion consistent during acceleration

This 100:1 CS-25 reducer is handy for high-load precision systems.
