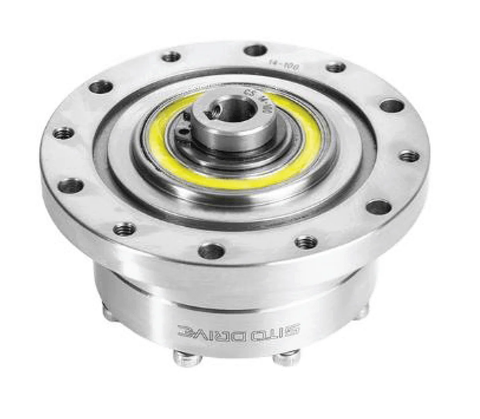

CS-25 Φ107mm Harmonic Drive Gear Ratio 120:1 - Strain Wave Gear Reducer

CS-25 Strain Wave Gear Reducer, Φ107mm Harmonic Drive Gear Ratio 120:1
✔️ Compact Harmonic Gear for Accurate Motion Control

The CS-25 120:1 harmonic gear reducer is used in heavy-duty motion control setups that require maximum torque and tight positioning.

✅ Gear ratio: 120:1
✅ Outer diameter: Φ107mm
✅ Rated torque at 2000 rpm: 78 Nm
✅ Limit for repeated peak torque: 167 Nm
✅ Limit for average torque: 115 Nm
✅ Limit for momentary peak torque: 304 Nm
✅ Maximum input speed: 5600 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤10 arcsec

💡 When should a 120:1 harmonic gear reducer be selected?
A 120:1 reducer is selected when maximum torque and fine motion control are critical.

- Supports high-load automation systems
- Improves accuracy in slow-speed motion
- Maintains stable output under stress

This 120:1 CS-25 reducer delivers strong performance for demanding applications.
