CS-25 Φ107mm Harmonic Drive Gear Ratio 30:1 - Strain Wave Gear Reducer

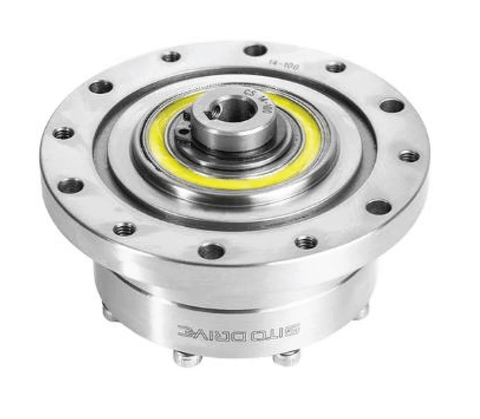

CS-25 Strain Wave Gear Reducer, Φ107mm Harmonic Drive Gear Ratio 30:1
✔️ Compact Harmonic Gear for Accurate Motion Control

The CS-25 30:1 harmonic gear reducer is commonly used in robotics, automation systems, and servo-driven machinery where controlled torque and smooth motion are needed.

✅ Gear ratio: 30:1

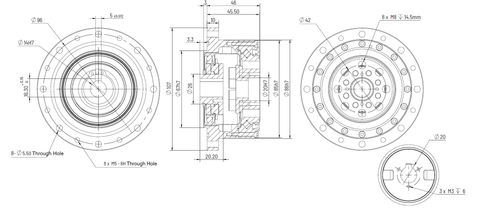

✅ Outer diameter: Φ107mm
✅ Rated torque at 2000 rpm: 27 Nm
✅ Limit for repeated peak torque: 50 Nm
✅ Limit for average torque: 38 Nm
✅ Limit for momentary peak torque: 95 Nm
✅ Maximum input speed: 5600 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤20 arcsec

💡 What is a strain wave gear reducer used for in motion control systems?
Strain wave gear reducers are used when accurate positioning and high torque density are required in compact assemblies.

- Helps maintain smooth rotation under load
- Supports stable torque output for servo motors
- Keeps backlash low for repeatable positioning

This 30:1 CS-25 reducer is a handy choice for medium-load precision motion control.
