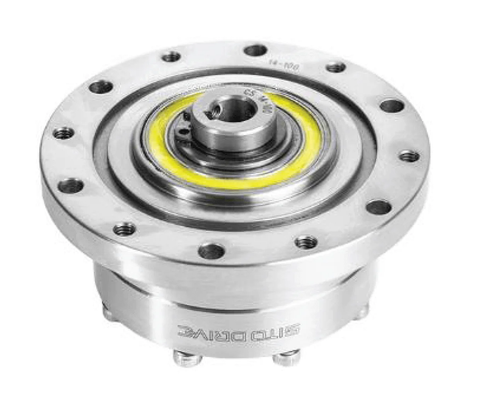

CS-32 Harmonic Gear Reducer 80:1

✔️ Compact Harmonic Gear for Accurate Motion Control

The CS-32 80:1 harmonic gear reducer is used in precision automation and robotic joints where higher reduction improves positioning accuracy.

✅ Gear ratio: 80:1

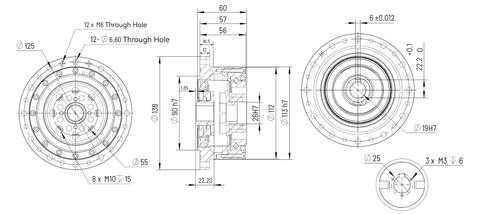

✅ Outer diameter: Φ138mm
✅ Rated torque at 2000 rpm: 118 Nm
✅ Limit for repeated peak torque: 304 Nm
✅ Limit for average torque: 167 Nm
✅ Limit for momentary peak torque: 568 Nm
✅ Maximum input speed: 4800 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 1.69 x10^-4 kgm2
✅ Backlash: ≤10 arcsec

💡 Why choose an 80:1 harmonic drive for precision positioning?
Higher reduction ratios help increase torque output and improve control resolution in servo-driven systems.

- Improves low-speed motion stability
- Handles heavier loads with better control
- Supports accurate repeat positioning

This 80:1 CS-32 reducer delivers clean motion for demanding applications.
