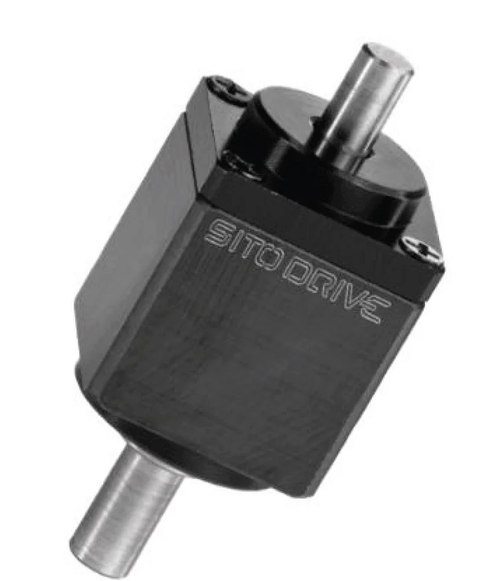

CS Mini-11 Strain Wave Gear Reducer ≤43mm - 30:1

The CS Mini-11 30:1 strain wave gear reducer is designed for compact precision systems where smooth motion and responsive speed control are required. With a maximum outer diameter of 43mm, it fits easily into tight mechanical layouts.

This 30:1 ratio is commonly used where moderate torque and higher output speed are needed, while still maintaining low backlash and accurate positioning.

✅ Gear ratio: 30:1
✅ Maximum outer diameter: ≤43mm
✅ Rated torque at 2000 rpm: 2.2 Nm
✅ Limit for repeated peak torque: 4.5 Nm
✅ Limit for average torque: 3.4 Nm
✅ Limit for momentary peak torque: 8.5 Nm
✅ Maximum input speed: 8500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 Why is a 30:1 strain wave gear reducer used in compact motion systems?
A 30:1 reduction provides a good balance between speed and torque, making it ideal for small robotic joints and automation components that need smooth motion without excessive reduction.
