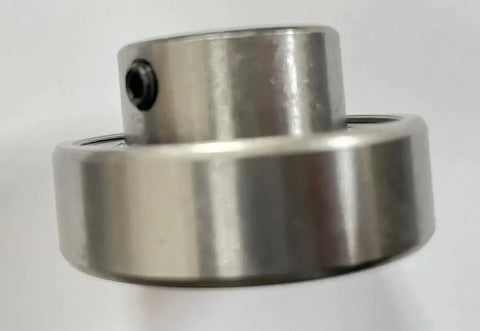

CSB205-16 Insert Ball Bearing - Set Screw locking Sealed Bearing 1" x 52mm x 27mm
UPC: 00193019178775
Type: Insert Ball Bearing With Set Screw locking
Size: 1" x 52mm x 27mm
Brand: VXB Bearing
Quantity: One Bearing
CSB205-16 Insert Ball Bearing - Set Screw Locking
✔️ 1" x 52mm x 27mm - Sealed - Shaft Ready
The CSB205-16 is a high-quality insert ball bearing designed for secure shaft mounting and smooth, sealed performance. Featuring a 1" bore and a set screw locking mechanism, it’s perfect for mounted units, pillow blocks, and flanged housings in agricultural, conveyor, and mechanical systems.
âś… Type: Insert ball bearing - sealed
âś… Inner Diameter: 1" (25.4mm)
âś… Outer Diameter: 52mm
âś… Width: 27mm
âś… Locking: Dual set screw locking on inner ring
âś… Closures: Rubber sealed for contaminant protection
âś… Material: Chrome steel construction
âś… Application: Pillow blocks, flanged housings, conveyors, agricultural machinery
âś… Quantity: 1 bearing
Dimensions Table:
| Spec | Value |
|---|---|
| ID (Bore) | 1" (25.4mm) |
| OD | 52mm |
| Width | 27mm |
| Locking Type | Set Screw |
| Seals | Rubber Sealed |
| Quantity | 1 Bearing |
đź’ˇ Why choose a set screw locking insert bearing like the CSB205-16?
Set screw locking bearings provide quick, firm shaft attachment - ideal for moderate speeds and loads where simple installation and maintenance are key.
Lock it in and keep it moving - this CSB205-16 insert bearing is a solid choice for dependable shaft support in tough conditions!
