DC 24V DIY Reciprocating Linear Actuator With Adjustable Telescopic Stroke And Speed Controller, Travel From 3cm To 15cm, 120 RPM, 5 To 25 Kg Thrust, Perfect For Home Workshop Projects And Robotic Builds

Single-Piece DC 24V Reciprocating Linear Actuator for DIY
✔️ Travel 3-15 cm, speed 120 RPM, thrust 5-25 kg, 24V DC

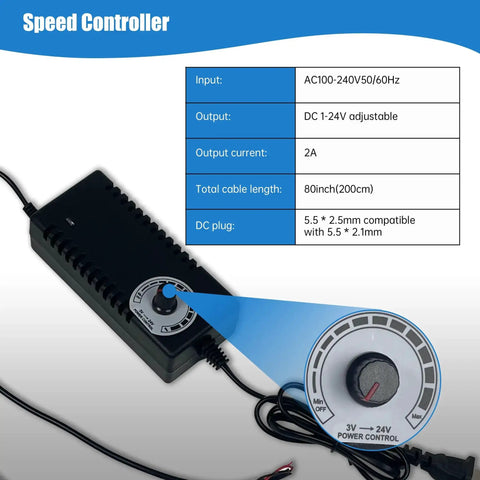

Compact DC 24V reciprocating linear actuator designed for small automation tasks in home workshops and robotics builds. It includes a built-in speed regulator and cables for easy plug-and-play setup.

✅ 24V DC operation with rated current 0.6 A and max torque 25 kg/cm

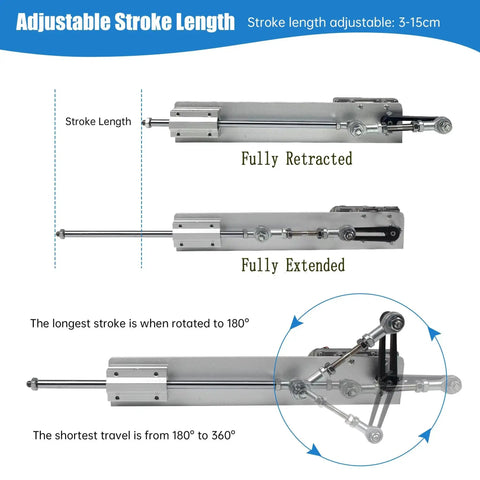

✅ Travel range 3 cm to 15 cm (adjustable telescopic stroke)
✅ Speed up to 120 RPM with regulator control
✅ Shaft diameter 8 mm; mounting holes 50x50 mm
✅ Weight 0.5 kg; pack includes 1 motor, 1 regulator, 1 cable

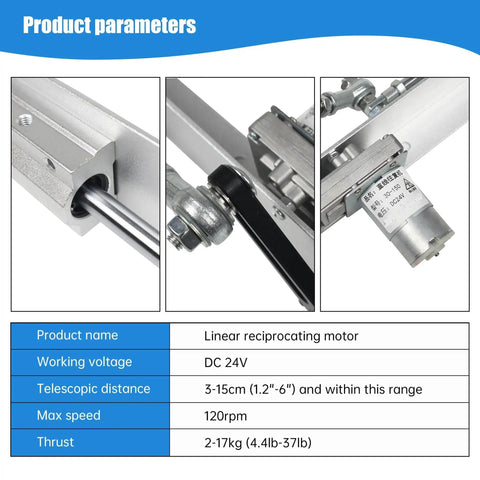

Stroke travel	3-15 cm (1.18-5.91 in)
Shaft diameter	8 mm (0.31 in)
Mounting holes	50x50 mm (2.0x2.0 in)

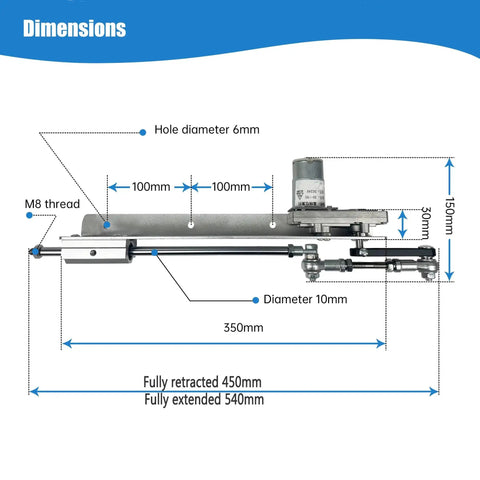

Overall size	60x102 mm (2.36x4.00 in)
Weight	0.5 kg (1.1 lb)
Max thrust	25 kg (55 lb)

💡 What is a DC 24V Reciprocating Linear Actuator used for in hobby projects? A handy drive for precise linear motion in DIY machines. - Handy for moving fixtures, clamps, or lifting arms in small automation setups - Great for robotics builds, test rigs, and adjustable fixtures - Works with the included regulator to tune speed and stroke on the fly
