DC Motor Speed Controller with 30A Fuse, 7-70V Wide Voltage Range Switch Control 30A Fuse

Single-Unit DC Motor Speed Controller with 30A Fuse for 7-70V Range
✔️ 7-70V input, 30A max, RUN/STOP/BRAKE, 5.9in wire, 1pc

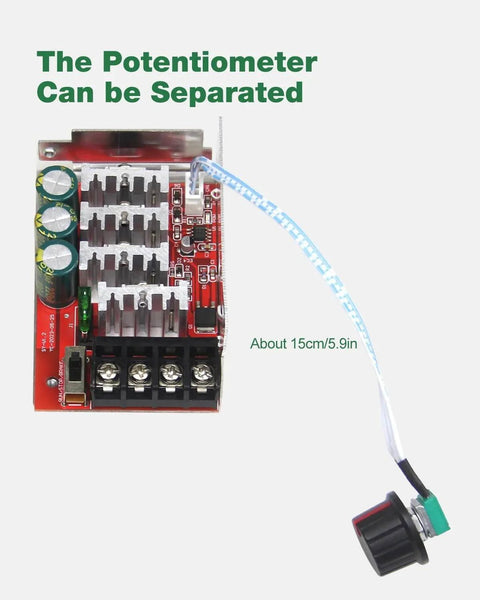

The DC motor speed controller with a 30A fuse is designed to drive DC brushed motors across a broad voltage range. It's a handy module for hobby robotics, DIY projects, and small conveyors. The unit supports PWM speed control, a separate potentiometer lead, and clear wiring labels: P+ to power, P- to ground, M+ to motor positive, M- to motor negative. The rated power depends on voltage: 12V up to 300W, 24V up to 400W, 48V up to 450W, 60V up to 500W. This single-unit package includes a 30A fuse and RUN/STOP/BRAKE switch on the PCB. Not for AC motors or brushless motors.

✅ Wide input voltage 7-70V, 30A fuse protection for safety
✅ Max motor drive current 30A; 12V up to 300W, 24V up to 400W, 48V up to 450W, 60V up to 500W

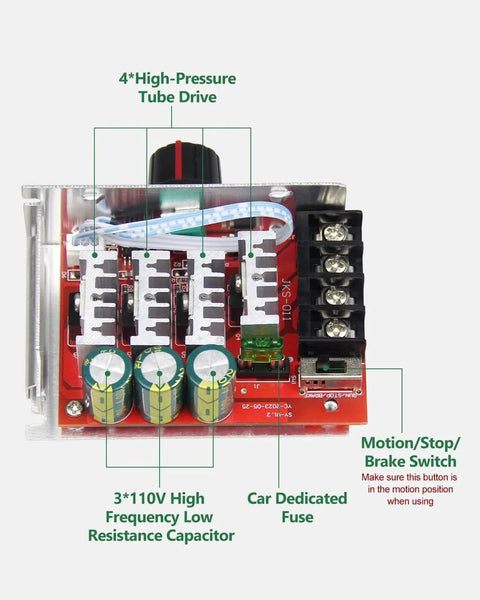

✅ RUN/STOP/BRAKE switch on PCB for instant control; wire length ~5.9in

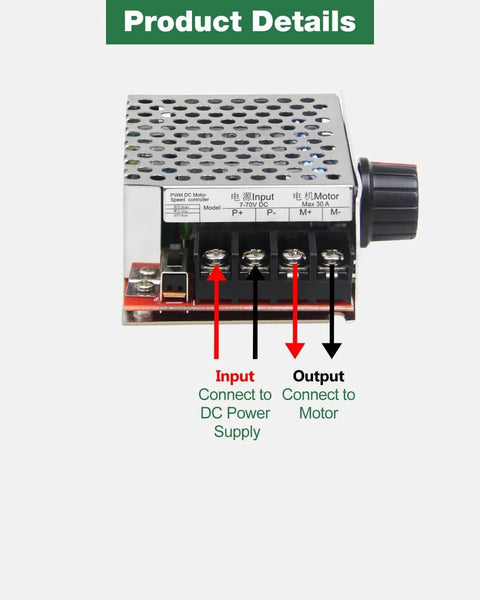

✅ P+ P- power inputs and M+ M- motor outputs clearly labeled for wiring

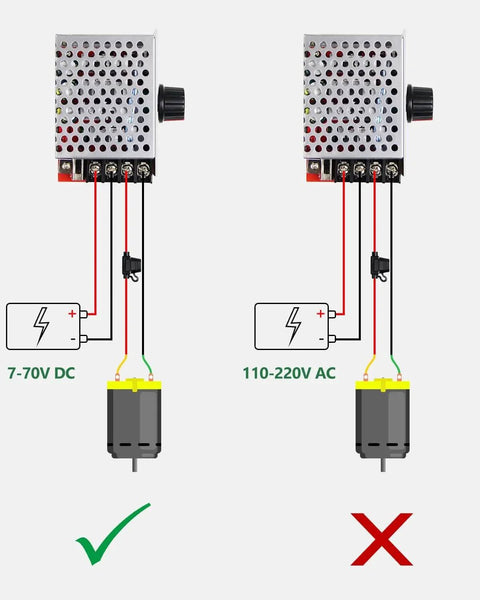

✅ For DC brushed motors only; not suitable for AC or brushless motors

💡 What is a DC motor speed controller used for in hobby projects?

This handy device helps you dial in the speed of DC brushed motors for robotics, tiny machines, and DIY setups. - PWM-based speed control for smooth operation - Wide 7-70V range with 30A fuse protection - RUN/STOP/BRAKE switch for quick control - Not compatible with AC or brushless motor types
