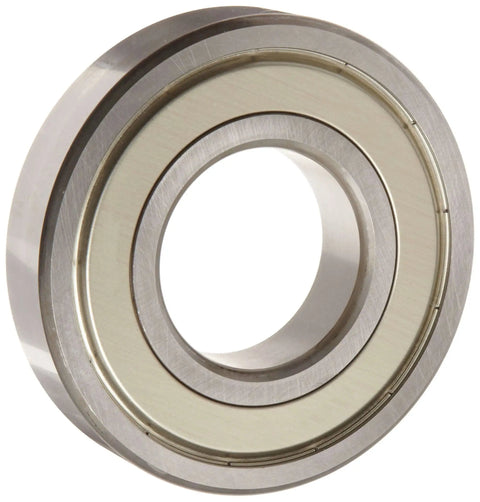

Deep groove ball bearing, single-row, double-shielded with pressed steel cage, normal clearance, metric 40 mm bore 90 mm OD 23 mm width 7500 rpm max 5395 lbf static 9105 lbf dynamic, single unit

Single deep-groove shielded ball bearing 40x90x23
✔️ 40 mm bore, 90 mm OD, 23 mm width; double-shielded, 7500 rpm max

This single metric deep-groove, double-shielded ball bearing supports radial and light axial loads in high-speed gearboxes, compressors, pumps and printing machines.

✅ Single-row deep-groove bearing for radial and axial support
✅ Double metal shields retain lubricant and block contaminants
✅ Pressed steel cage ensures even ball spacing and reduced vibration
✅ Normal radial clearance for applications without thermal expansion
✅ Dimensions: 40 mm bore x 90 mm OD x 23 mm width
✅ Max speed 7500 rpm; static load 5395 lbf; dynamic load 9105 lbf
✅ Sold as a single bearing for industrial and OEM replacements

💡 What is a sealed ball bearing used for in high-speed industrial gearboxes? They are handy for keeping lubrication in and contamination out while handling high RPM and combined loads. - Ideal for gearbox shafts, compressors, pumps and motor drives where sealed ball bearing protection is needed. - Consider ceramic bearings for higher speed or lower friction needs; sealed options reduce maintenance. - Also used in linear slide unit assemblies and precision drives where stability and long life matter.
