Diffuse-Mode Pro-Grade Glass Fiber Optic Assembly With Bifurcated Emitter And Receiver Ends, 5/16-24 UNF Brass Tip, Stainless Steel Flexible Sheath, 36 Inch Length For Fiber-Capable Photoelectric Sensors

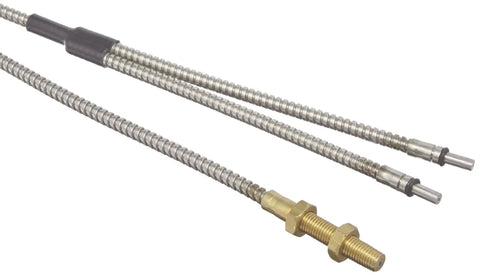

Diffuse-Mode Glass Fiber Optic Assembly with Bifurcated Ends
✔️ Bifurcated emitter/receiver, 0.062 in fiber, 36 in length

This diffuse-mode glass fiber optic assembly is designed for fiber-capable photoelectric sensors used in manufacturing and packaging lines. It features a bifurcated head with a combined sensor body and separate emitter and receiver ends, plus a rugged 302 stainless steel flexible sheath for harsh environments. The assembly length is 36 inches (914 mm) with a 0.062 inch (1.6 mm) glass fiber bundle and a 5/16-24 UNF brass tip for easy mounting in confined spaces.

✅ Diffuse-mode glass fiber optic assembly for fiber-capable sensors (sensor not included)
✅ Bifurcated style with combined head and separate emitter/receiver ends
✅ 36 in (914 mm) long with 0.062 in (1.6 mm) glass fiber bundle and 302 stainless sheath
✅ 5/16-24 UNF brass adjustable sensor tip mount for easy mounting
✅ Sensing range up to 65 mm in diffuse mode for tight work areas
✅ Abrasion-resistant stainless steel flexible sheath for harsh environments

💡 What is a diffuse-mode glass fiber optic assembly used for in fiber-capable photoelectric sensors? Handy for industrial sensing in tight spaces.

- handy in tight spaces for signal transmission in manufacturing lines - combines emitter and receiver in a compact fiber unit for easy alignment - works well with reflective targets for reliable diffuse-mode sensing
