Direct From Manufacturer 2 Inch Bore 24 Inch Stroke Welded Heavy Duty Hydraulic Cylinder With Cross Tube Ends Double Acting Piston 3500 PSI Rating 8400 Lb Load SAE 6 Ports Universal Hydraulic Ram Magister

Heavy Duty 2 in Bore 24 in Stroke, Single Unit Cylinder
✔️ 2 in bore, 24 in stroke, 3500 psi, 8400 lb load, cross tube ends

This welded hydraulic cylinder is designed for heavy equipment like front-end loaders and industrial presses. With cross-tube ends and universal mounting, it's built to replace worn cylinders in loaders and other machines. Manufactured in Europe with a 2-year warranty.

✅ Bore: 2 in (50.8 mm); Outer dia: 2.38 in (60.5 mm)
✅ Stroke: 24 in (609.6 mm)
✅ Rod diameter: 1.25 in (31.75 mm)

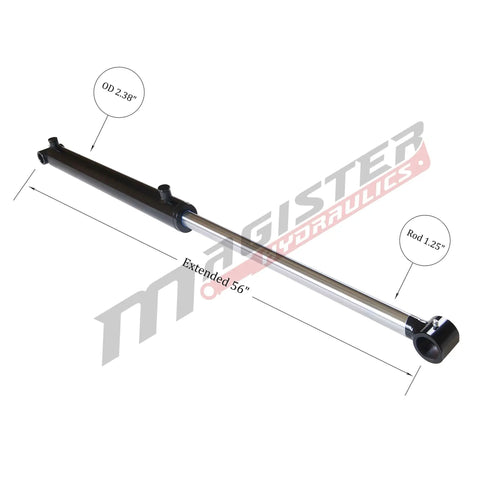

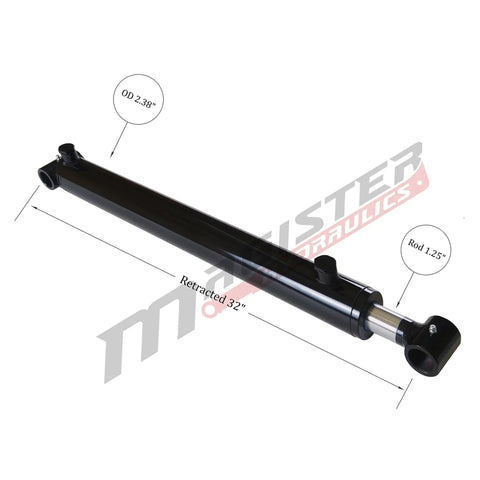

✅ Retracted length: 32 in (812.8 mm); Extended length: 56 in (1422.4 mm)
✅ Welded construction with cross tube ends; universal mounting
✅ Pressure rating: 3500 psi
✅ Load capacity: 8,400 lb (3,810 kg)

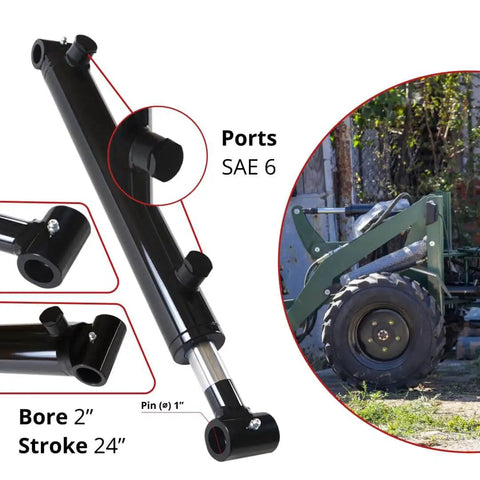

✅ Ports: SAE 6 (O-ring boss)
✅ Configuration: Double acting
✅ Mounting: Cross tube ends with 1 in pin holes
✅ Replacement for front-end loaders
✅ Made in Europe; 2-year warranty

💡 What is a hydraulic cylinder used for in heavy equipment?

Hydraulic cylinders provide controlled linear motion and force for lifting and pushing in heavy machinery. Handy for loaders, presses, and automation.

- Bore size and stroke determine travel and force - Mounting options (cross tube ends) and pin hole spacing - Port configuration (SAE 6) and sealing choices - Material quality and warranty impact long-term durability
