DIY CNC Stepper Kit With DM542T Driver And Nema 23 3Nm Motor 425 Oz In 4.2A For 36V LRS 150 36 Power Supply Includes 57 X 57 X 114 Mm 4 Wire Bipolar Motor For Home Shop Milling Engraving And Light CNC Projects

Single CNC Stepper Kit with DM542T & Nema23 3Nm Motor
✔️ DM542T driver, Nema23 3Nm motor, 36V supply, 4-wire configuration

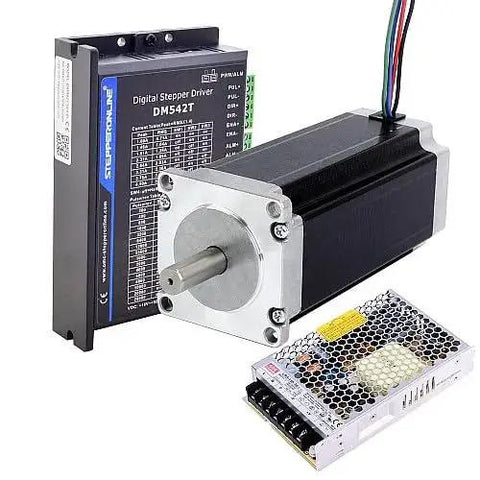

This DIY CNC stepper kit combines a DM542T driver, a Nema 23 3Nm motor, and a MEANWELL LRS-150-36 power supply for hobby CNC machines. It's ideal for home shop milling, engraving, and light CNC projects.

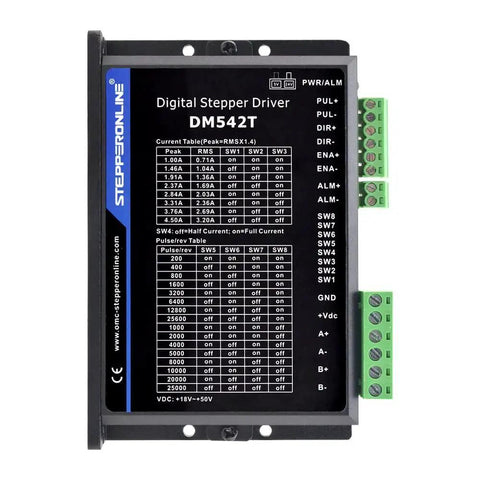

✅ DM542T driver: 1.0-4.5A peak, 3.2A RMS, 20-50VDC, TTL input

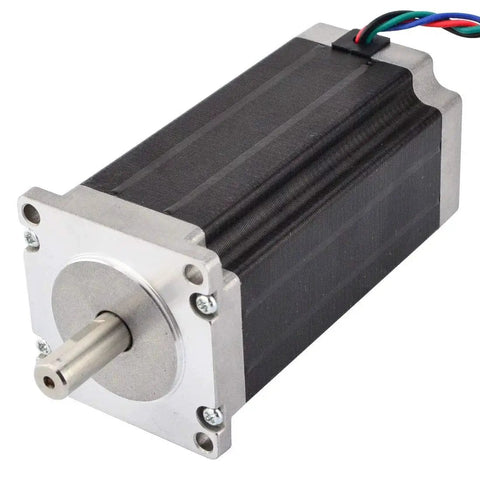

✅ Nema23 3Nm motor: 57x57x114 mm (2.24x2.24x4.49 in), 4-wire, 0.9Ω, 3.8 mH

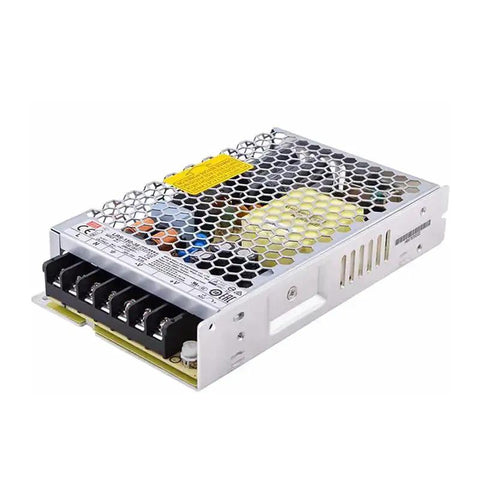

✅ LRS-150-36 PSU: 36VDC, 4.3A, 154.8W, 85-132VAC input
✅ Includes wiring harness and standard A+/A-, B+/B- connections
✅ Suitable for 2- and 4-phase motors; anti-resonance for smooth torque

💡 What is a CNC stepper kit with a DM542T driver used for in a home workshop?

This handy setup is a go-to for hobbyists building compact, controllable motion systems.

• handy for hobby milling, engraving, and light CNC routing with smooth motion
• offers precise control via adjustable current and multi-step microstepping
• works with standard 36V power supplies and 4-wire bipolar motors
