DM542 Digital Microstep Driver For Nema 17 23 And 34 Stepper Motors 2 Phase Hybrid Controller 20 To 50 Volt DC 4.2 Amp Max Replacement For M542 M542H Beefed Up High Precision Motion Control Pro

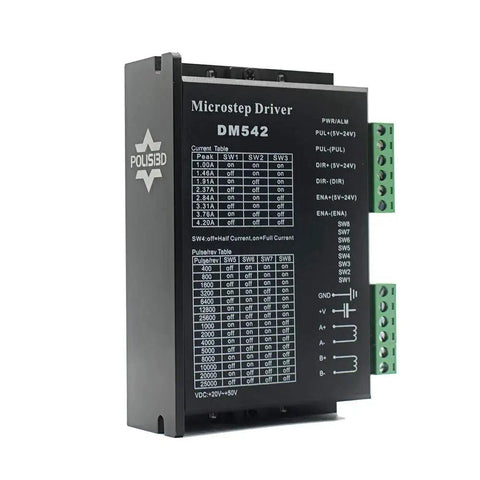

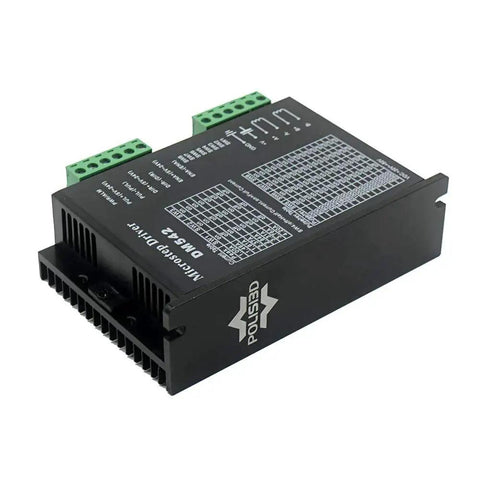

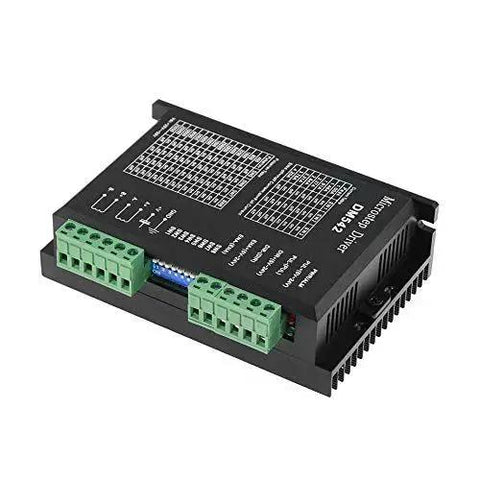

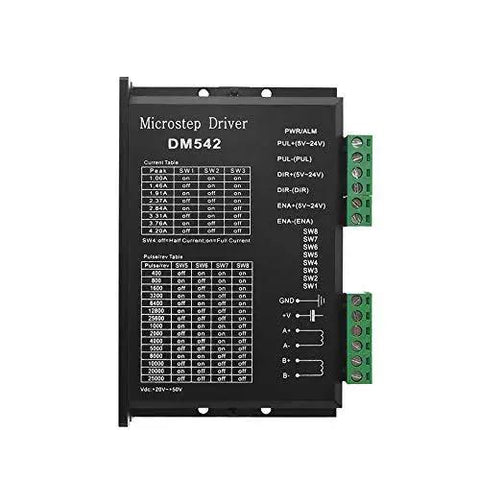

DM542 Microstep Driver for NEMA 17/23/34 Motors
✔️ 1 piece DM542, 2-phase bipolar chopper, 20-50V DC, 4.2A max

Designed to drive 2-phase hybrid stepper motors in CNC machines, 3D printers, and automation setups. This DM542 module supports NEMA 17, NEMA 23, and NEMA 34 sizes (42/57/86 mm OD) and offers high microstep subdivision for precise control.

✅ Compatible with NEMA 17/23/34 2-phase hybrid steppers (42/57/86 mm OD)
✅ Includes 1-piece DM542 module; supports 2/4/8/16/32/64/128/256 microsteps

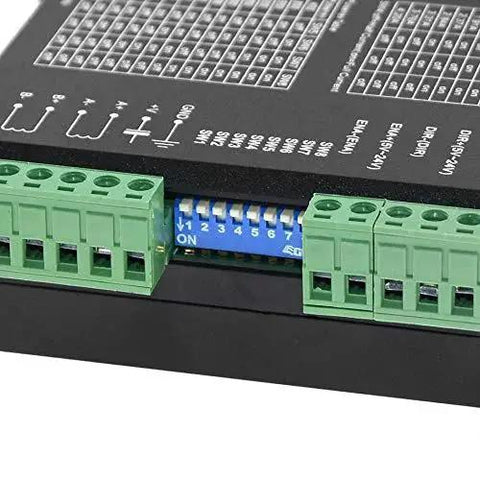

✅ Optical isolation input; adjustable output current via DIP switches
✅ TTL input compatible; differential input support; bipolar current chopping

💡 What is a stepper motor driver used for in precision motion systems? It manages current to motor windings to produce precise microsteps and controlled positioning. - It translates digital commands into smooth, accurate motion - It protects motors and drivers by limiting current and heat - It's handy for CNC, robotics, and automation projects
