DM542 Stepper Driver For Nema 17 23 34 Motors, 2-Phase Digital Microstep Controller With Anti Resonance For Top Notch Smooth Motion And Low Noise, 20-50V DC, 4.2A Max, Replaces M542 M542H, Ideal For CNC Milling, 3D Printing And Hobby Machining
UPC: 00193019691977

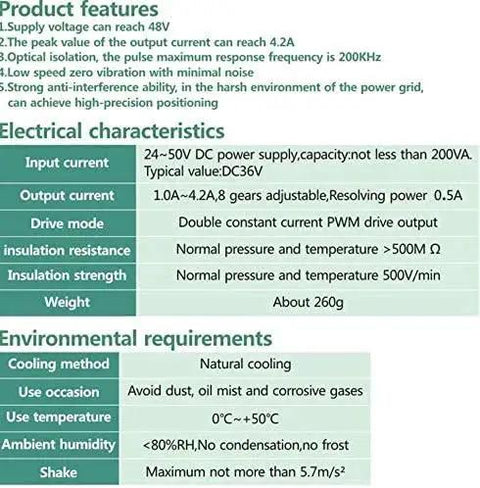

✔️ 2-phase driver, 1.0-4.2A, 24-50V input, anti-resonance for smooth torque

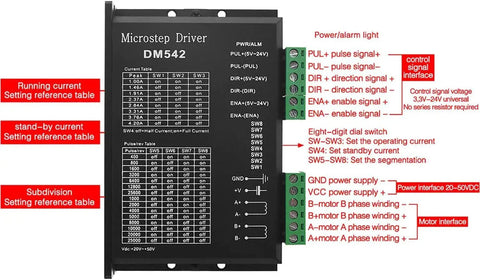

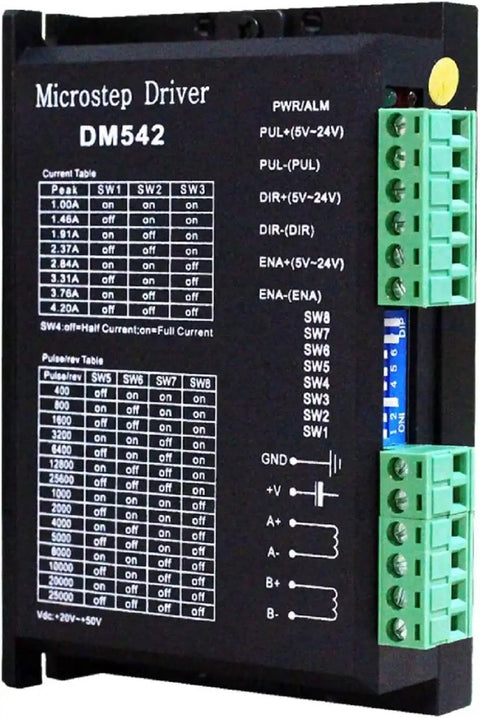

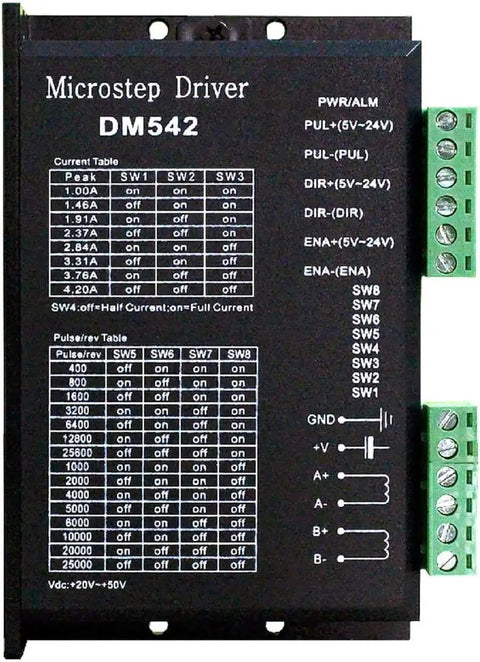

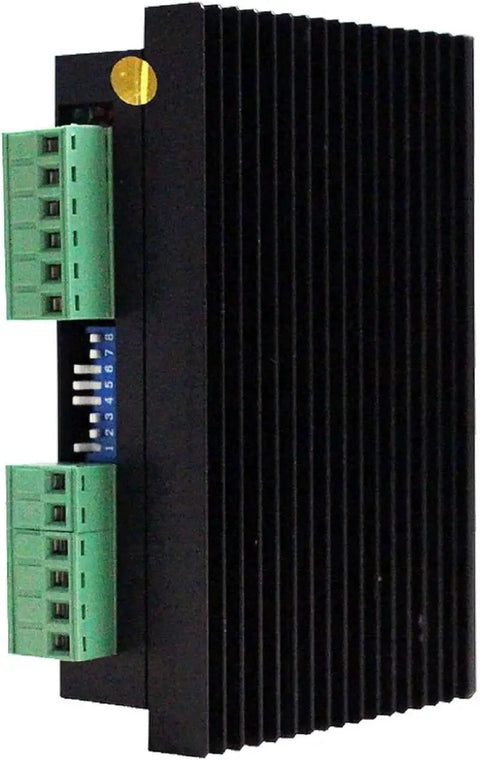

This DM542 is a 2-phase digital microstep driver designed for NEMA 17, NEMA 23, and NEMA 34 stepper motors. It’s a compact control module used in CNC milling, 3D printing, and hobby machining to deliver precise, quiet motion with anti-resonance. Motors sizes supported: 42 mm, 57 mm, and 86 mm outer diameter (about 1.65, 2.24, and 3.39 in). Package includes 1 piece DM542.
✅ Input voltage: DC 24-50V

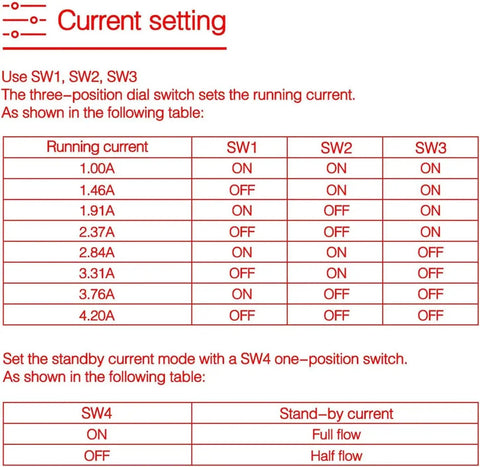

✅ Output current: 1.0-4.2A (adjustable)
✅ Compatible motor sizes: 42, 57, 86 mm (1.65, 2.24, 3.39 in) diameter
✅ Anti-resonance feature for smoother torque and reduced heat
✅ Package: 1 piece DM542
💡 What is a DM542 stepper driver used for in CNC milling and 3D printing setups? This handy controller drives NEMA 17/23/34 motors with precise microsteps and anti-resonance for stable operation. - Handy for CNC mills, 3D printers, and hobby machines - Uses 24-50V DC input and 1.0-4.2A output - Reduces resonance and heat for smooth, quiet motion - Compact 200 g package for easy retrofits
