Dope Nema 17 Stepper Motor Pack 3 Pack YEJMKJ 2 Phase 1.8 Degree High Torque 0.6Nm Bipolar 48mm 2.3A 1.2 Ohm 4-Lead Shaft 24mm 5mm Diameter Cable 1M For 3D Printer DIY Robot CNC Machine Ready To Drop In To Most 3D Printers And DIY CNC Systems

High-Torque NEMA 17 Stepper Motor 3-Pack for DIY CNC
✔️ 3-pack, 2-phase, 1.8° step, 0.6 Nm holding torque

This 3-pack of NEMA 17 two-phase stepper motors is ready for ready-to-drop-in use in DIY CNC machines, 3D printers, and robotics projects. They follow standard NEMA 17 mounting patterns and feature a 5 mm shaft with a 1 m cable for easy, tidy wiring in compact setups.

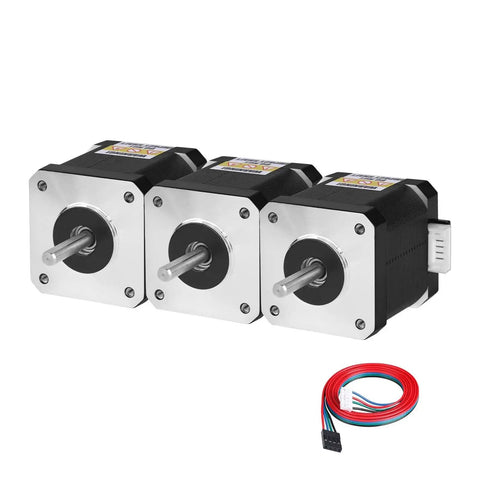

✅ 3-pack NEMA 17 motors for multi-axis projects.
✅ 2-phase design with 1.8° step angle (200 steps/rev).
✅ Holding torque 0.6 Nm (84.97 oz·in) at rated current 2.3 A and resistance 1.2 Ω.

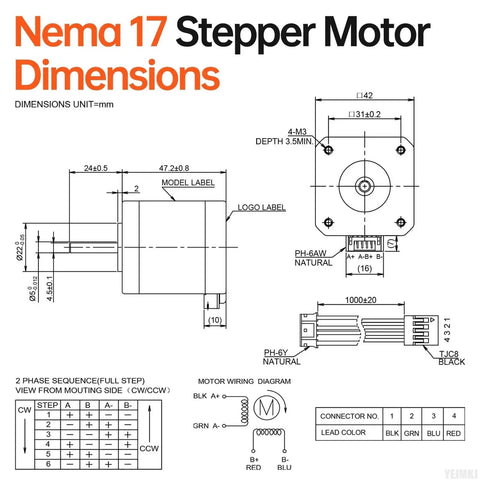

✅ Body size 42x42x47.2 mm (1.66x1.66x1.86 in); shaft Ø5 mm (0.197 in); shaft length 24±0.5 mm (0.94 in).
✅ D-cut length 24 mm (0.94 in); installation hole distance 31 mm (1.22 in).
✅ Cable length 1 m (3.28 ft); 4-conductor color code A+ black, A- green, B+ red, B- blue.

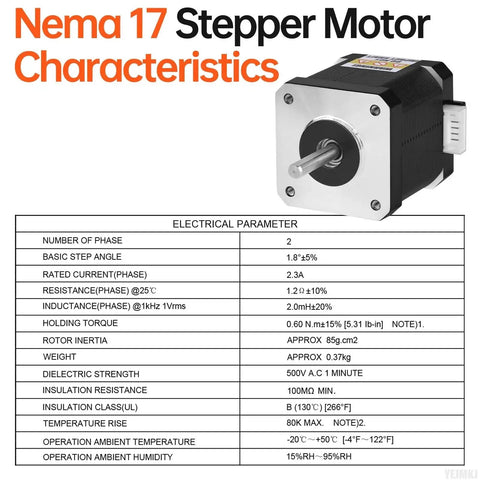

✅ Weight 356 g (0.79 lb) per motor; inductance 2.0 mH ±20%; rated current 2.3 A; resistance 1.2 Ω.

💡 What is a long-tail question about NEMA 17 stepper motors for DIY printers and small CNC setups?

This handy motor type is a common choice for hobby projects due to its balance of size and torque.

- Great for driving X and Y axes in 3D printers and desktop CNCs. - Fits standard NEMA 17 mounting holes and 5 mm shaft. - Delivers 0.6 Nm holding torque at a safe current range (12-24 V DC). - Works with typical stepper drivers used in hobbyist machines.
