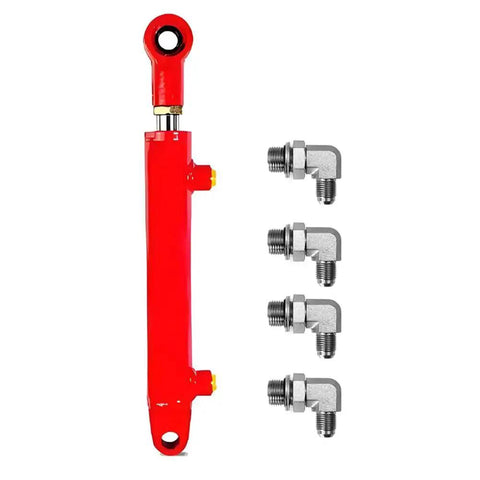

Double Acting Welded Hydraulic Cylinder 1.5 Bore 8 Stroke 2 Ton JIC Connectors

Heavy-Duty Welded Hydraulic Cylinder 1.5 Bore
✔️ Single unit, 1.5 in bore, 8 in stroke, 4410 lb thrust

This welded double-acting hydraulic cylinder is built to handle heavy loads in construction machinery, agricultural equipment, and material handling systems. Its fully welded steel body, solid chrome-plated rod, and rugged seals resist leaks, rust, and impact in harsh outdoor environments.

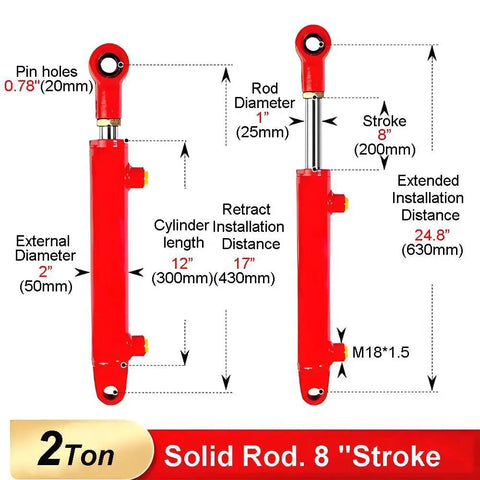

✅ Bore: 1.5 in (40 mm), OD: 2 in (50 mm)
✅ Stroke: 8 in (200 mm)
✅ Rod: 1 in (25 mm)

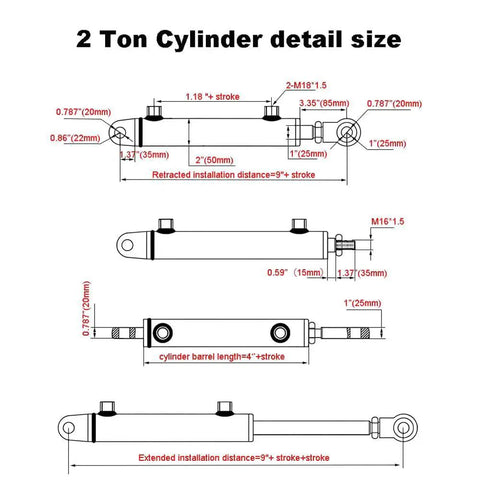

✅ Retracted: 17 in (430 mm), Extended: 24.8 in (630 mm)
✅ Pin holes: 0.78 in (20 mm)
✅ Fittings: 3/8 in JIC 37° (9/16 in-18)
✅ Pressure rating: 2320 PSI

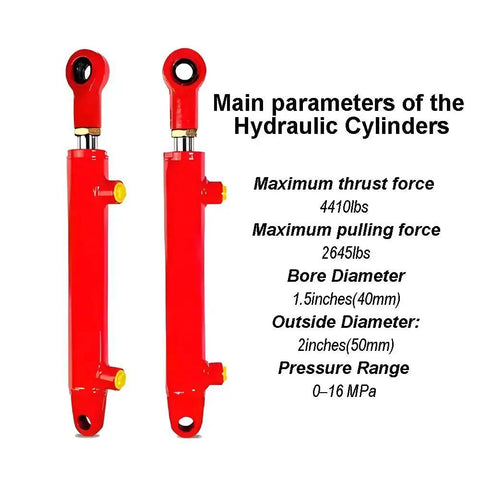

✅ Max thrust: 4410 lbs, Max pull: 2645 lbs

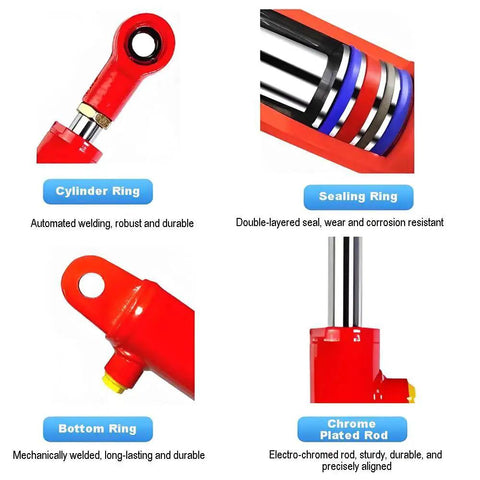

✅ Construction: fully welded steel, chrome-plated rod for durability

💡 What is a hydraulic cylinder used for in heavy equipment? This handy device provides linear force to lift, push, and pull loads.
- Handy for lifting and actuating attachments on construction and farming gear
- Sealed design with corrosion-resistant seals and chrome rod reduces leaks and wear
- Compatible with standard JIC fittings and welded cylinder configurations
