Double Output Shaft For NMRV Worm Gearbox Type NMRV40 RV040 Nema 34 Stepper Motor With Gaskets S Ring Corner Pin 18mm Diameter 164mm Length Dual Output Shaft With M6 X 16 Screw Holes Heavy Duty Alloy Construction YIDOFENG

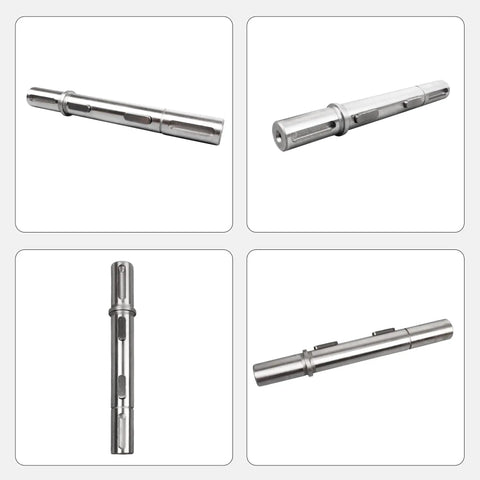

Dual Output Shaft for NMRV40 Worm Gear Reducer 18mm
✔️ Dual output shaft, 18mm dia, 164mm length, M6x16 holes

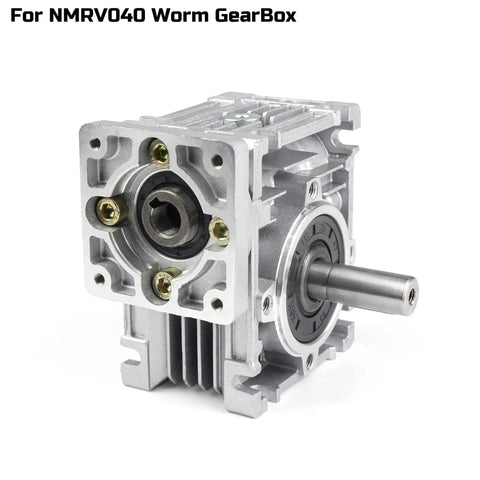

This heavy-duty double-output shaft is designed for the NMRV040 worm gearbox paired with a NEMA 34 stepper motor. It’s built for compact drives in automation, robotics, and other precision-motion setups where two driven elements share a single gearbox.

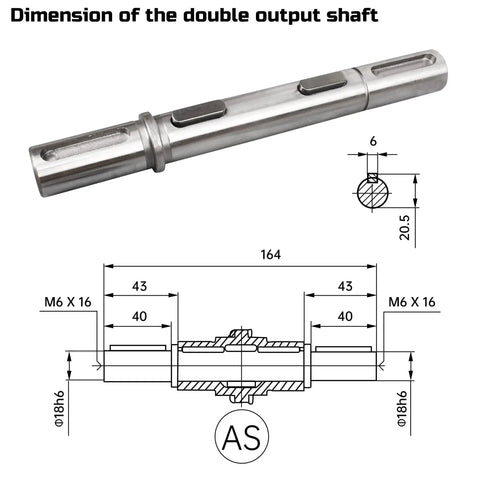

✅ Output diameter: 18 mm
✅ Total length: 164 mm
✅ Output terminal length: 43 mm

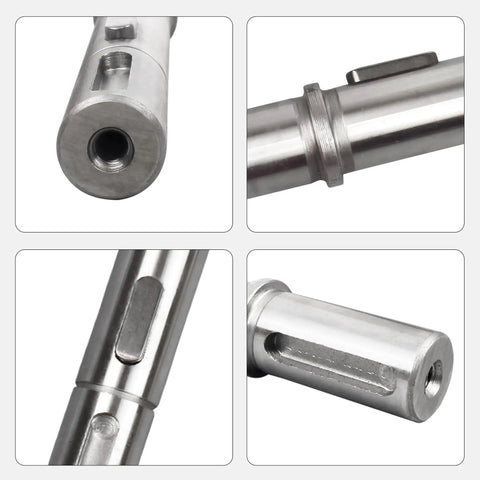

✅ Dual output shaft with M6x16 screw holes
✅ Alloy steel construction for high temperature resistance and wear

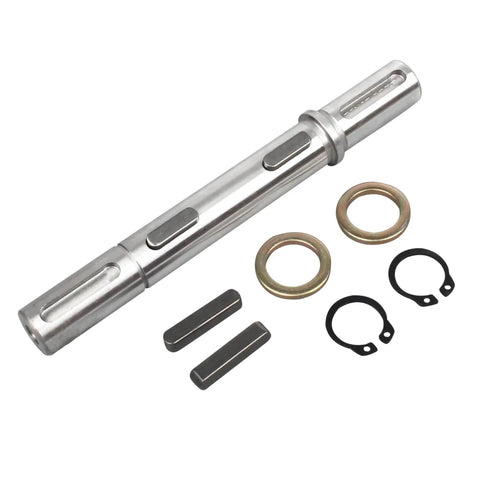

✅ Includes 1 x Output Shaft, 2 x Gaskets, 2 x S rings, 4 x Corner pins

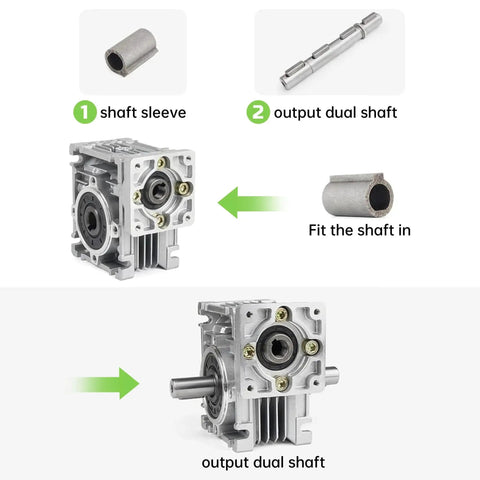

💡 What is a dual-output shaft for NMRV worm gear reducers used for and why choose it? This handy accessory helps drive two loads from a single gearbox.
- Handy for dual-drive setups in compact gear systems
- Enables two independent outputs from one gearbox
- Compatible with 18 mm output diameter and M6 mounting
- Improves layout flexibility in automated assemblies
