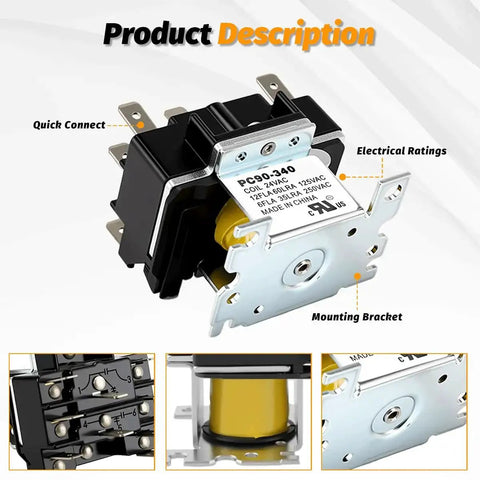

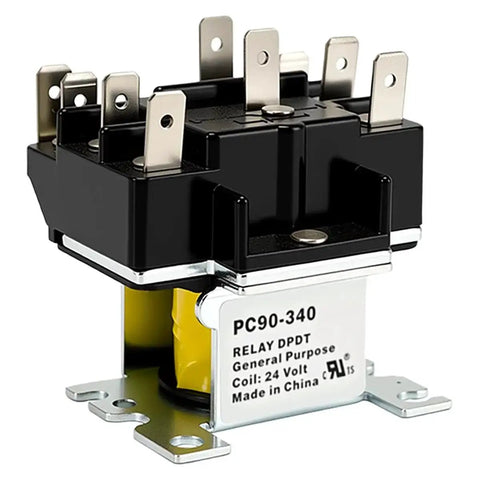

DPDT 24V General Purpose Switching Relay For HVAC And Furnace Control Replaces R8222D1014 Outdoor Wood Boiler Relay Coils At 24 Volts 2 Form C Contacts Compatible With White Rodgers Emerson Supco Packard Mars Jard R8222B1067

24V DPDT HVAC relay for furnace control single unit
✔️ 24V coil, DPDT two Form C contacts, replacement for R8222D1014

This 24V DPDT general purpose switching relay is used in HVAC and furnace systems to control fans and other high-current loads. It serves as a direct replacement for common models in White-Rodgers, Emerson, Supco, Packard, Mars, and Jard families.

✅ Coil voltage: 24V DC
✅ Contact arrangement: DPDT, 2 Form C

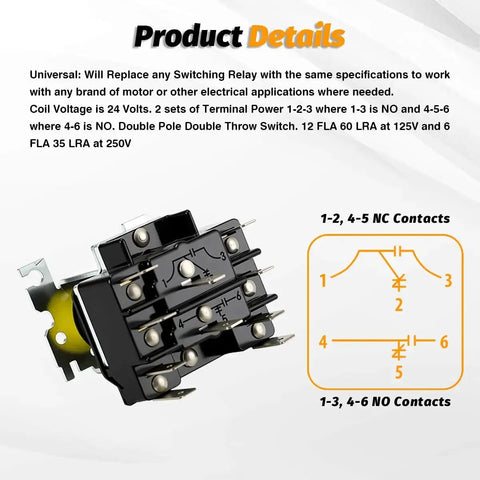

✅ Terminal sets: 1-2-3 and 4-5-6 with NO on 1-3 and NO on 4-6
✅ Electrical ratings: 12 FLA @120V, 6 FLA @277V; 60 LRA @120V, 35 LRA @277V

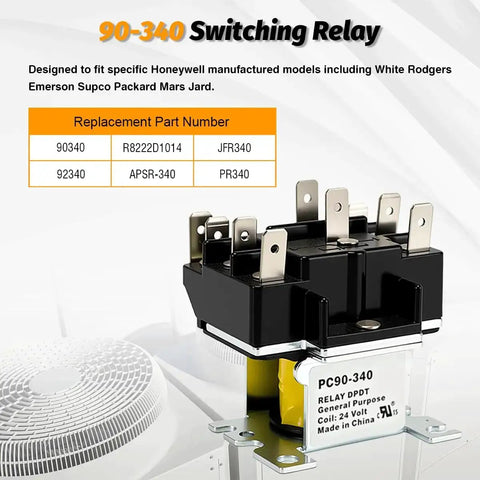

✅ Replacement compatibility: Direct replacement for R8222D1014 and related packs
✅ Typical use: HVAC fan motor control and general electrical switching

💡 What is a DPDT relay used for in HVAC systems? A handy device that switches two circuits from one 24V coil.

- It provides two Form C contacts to drive two loads from a single coil - It keeps control circuits safe by isolating low-voltage control from power loads - It matches common replacement models like R8222D1014 for easy upgrades - It simplifies wiring and improves reliability in furnace control panels
