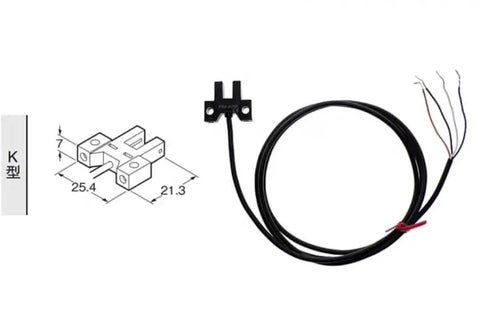

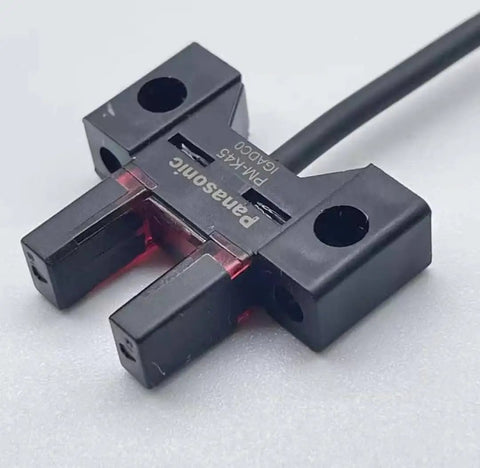

Dual Output NPN Photoelectric Switch Sensor PM K45 With Normally Open And Normally Closed Modes 1 Meter Sensing Range Built Tough For Object Detection And Automation Plug And Play Wiring And Broad Compatibility
UPC:
✔️ NO/NC outputs, 1 m cable, 1 m sensing range, robust optics
This compact photoelectric switch detects presence at short range and is built for harsh industrial environments. Use it for object detection on conveyors, packaging lines, safety interlocks, and automated machinery to improve throughput and reliability.

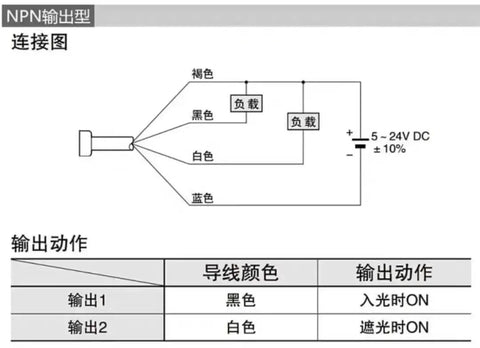

✅ Output: NPN (sinking)
✅ Detection distance: 6 mm (0.24 in)
✅ Power supply: 5-24 VDC ±10%
✅ Minimum detectable object: 0.8 mm x 1.2 mm (0.03 in x 0.05 in) opaque
✅ Deviation: < 0.05 mm
✅ Repetition accuracy: < 0.01 mm
✅ Current consumption: < 15 mA
✅ Reaction time: 20 us (light), 80 us (dark) >3 kHz
✅ Work status indicator: Red LED
✅ Operating temp/humidity: -25 to +55 °C; 5%-85% RH
✅ Voltage endurance: AC 1000 V for 1 min between terminals and casing
✅ Insulation resistance: > 20 MΩ at DC 250 V
✅ Vibration: 10 Hz-2000 Hz, 1.5 mm, 2 h in XYZ
✅ Impact: 15000 m/s², 3x directions
✅ Projection element: IR LED 855 nm
✅ Shell: PBT; Display cover: PC
✅ Cable: 4-core, 0.09 mm², adhesive PVC 1 m
✅ Weight: ~10 g
💡 What is a photoelectric sensor used for in automation setups? A handy tool for non-contact detection and quick control logic in machines. - Object presence detection on conveyors - Interlocks and start/stop control on packaging lines - Simple integration with 5-24 VDC systems - Fast response for high-speed automation
