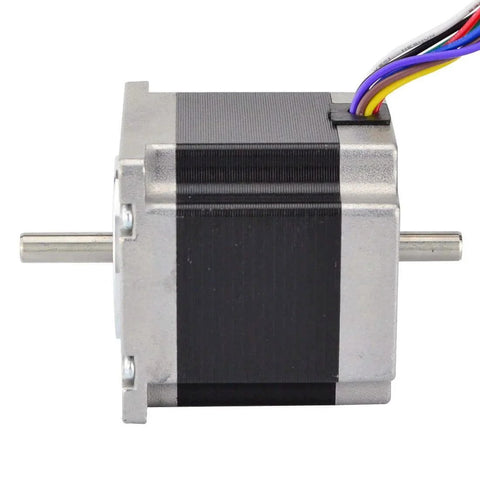

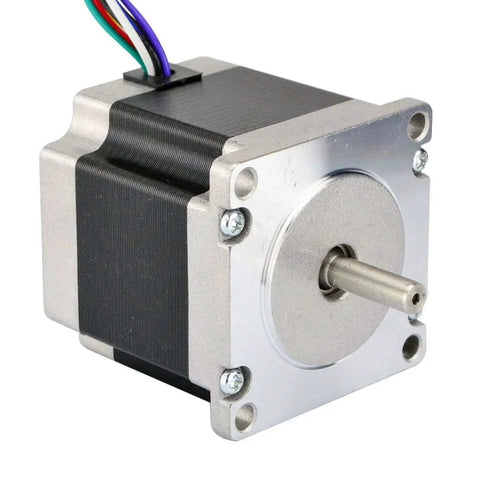

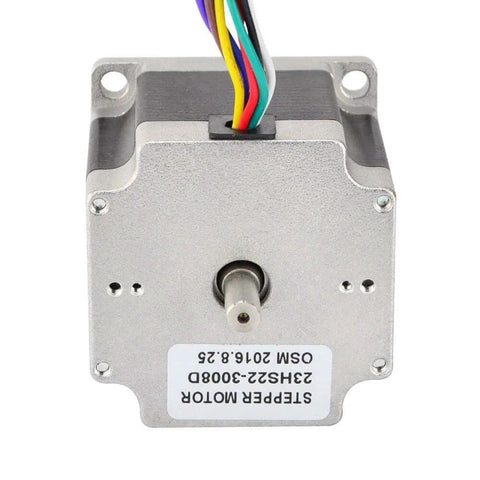

Dual Shaft Nema 23 CNC Stepper Motor 1.26Nm(179oz.in) 8 Wires CNC Mill Router

Dual Shaft NEMA 23 CNC Stepper Motor with 8-Wire Drive Options
✔️ 1.26Nm holding torque, 8-wire, uni/bi-polar options, 24-48V

This dual-shaft NEMA 23 stepper motor is a popular pick for DIY CNC setups, including compact mills and routers. It supports unipolar or bipolar wiring and has a rear shaft that can mount an encoder or hand wheel. Pack size: 1 unit.

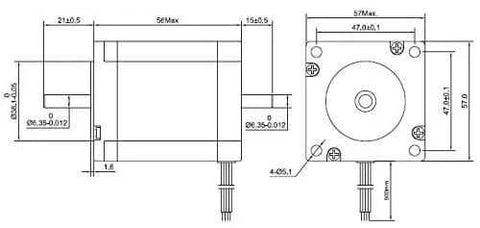

✅ Frame Size: 57 x 57 mm
✅ Body Length: 56 mm
✅ Shaft Diameter: 6.35 mm
✅ Front Shaft Length: 21 mm
✅ Rear Shaft Length: 15 mm
✅ Leads: 8
✅ Lead Length: 500 mm
✅ Weight: 0.7 kg
✅ Motor Type: Unipolar/Bipolar Stepper
✅ Step Angle: 1.8°
✅ Holding Torque (Bipolar Serial): 1.26 Nm (178.5 oz-in)
✅ Holding Torque (Bipolar Parallel): 1.26 Nm (178.5 oz-in)
✅ Holding Torque (Unipolar): 0.9 Nm (127.5 oz-in)
✅ Rated Current/phase (Unipolar): 3.0 A
✅ Rated Current/phase (Bipolar Serial): 2.12 A
✅ Rated Current/phase (Bipolar Parallel): 4.24 A
✅ Phase Resistance (Unipolar): 0.75 ohm
✅ Phase Resistance (Bipolar Serial): 1.5 ohm
✅ Phase Resistance (Bipolar Parallel): 0.375 ohm

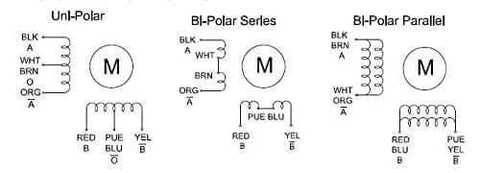

✅ Connection: RED(A+), YEL(A-), BLK(C-), BLU(C+), WHT(B+), PUR(B-), GRN(D-), BRN(D+)
✅ Warning: Use a constant current drive; direct power will damage the motor

💡 What is a dual shaft NEMA 23 CNC stepper motor used for in DIY CNC projects? This handy motor drives precise axes with flexible wiring options. - Handy for X, Y, and Z axis motion in hobby CNC mills and routers - Works with unipolar or bipolar drives, selectable serial or parallel wiring - Rear shaft accepts encoder, hand wheel, or other accessories
