Dual Shaft Nema 24 Stepper Motor High Torque For CNC Mill And 3D Printer, 2 Phase 1.8 Degree Bipolar Unipolar, 2.7A 1.0 Ohm, 8-Lead, 100mm Length, 8mm Diameter Shafts, 1M Cable, 60x60mm Body, Ideal For DIY Robots And Prototyping

High Torque Dual Shaft NEMA 24 Stepper Motor - 1 Unit
✔️ 2.7A, 1.0Ω, 8-lead, dual 8mm shafts, 60x60mm body

This NEMA 24 dual shaft stepper motor is built for high torque and precise positioning in DIY CNC mills, 3D printers, and automated robotics. Its compact 60x60 mm body fits tight spaces, with dual shafts for versatile mounting and direct-drive options. Includes a 1 m 8-lead cable for straightforward wiring.

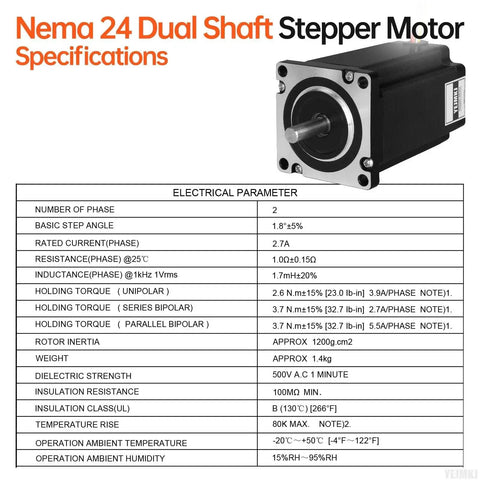

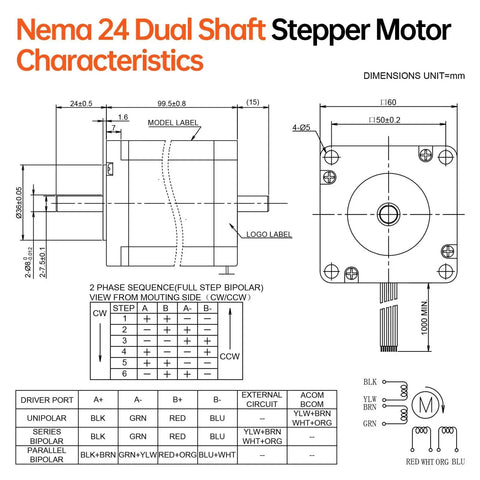

✅ Body size: 60x60x99.5 mm (2.37x2.37x3.92 in)
✅ Front shaft diameter: Ø8 mm; front shaft length: 24 mm; rear shaft length: 15 mm
✅ Dual shafts enable flexible mounting and direct drive
✅ Step angle: 1.8° (200 steps/rev)
✅ Holding torque: 3.7 Nm (series/parallel bipolar); 2.6 Nm unipolar
✅ Rated current: 2.7 A; Resistance: 1.0 Ω; Inductance: 1.7 mH ±20%
✅ Cable: 1 m, 8-lead; Weight: 235 g; Rotor inertia ~1200 g·cm²
✅ Dielectric strength: 500 VAC (1 min); Insulation class B; Temp range: -20°C to 50°C

💡 What is a NEMA 24 dual shaft stepper motor commonly used for in hobby CNC and 3D printing?

It’s a handy solution for precise motion in compact projects.

- handy for accurate positioning in small XYZ axes - pairs well with standard drivers and microstepping for smooth motion - dual shafts provide flexible mounting options for belts, pulleys, or direct drive - compact 60x60 mm footprint fits tight enclosures
