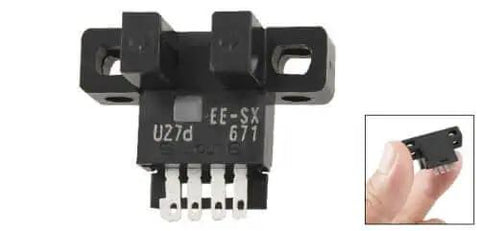

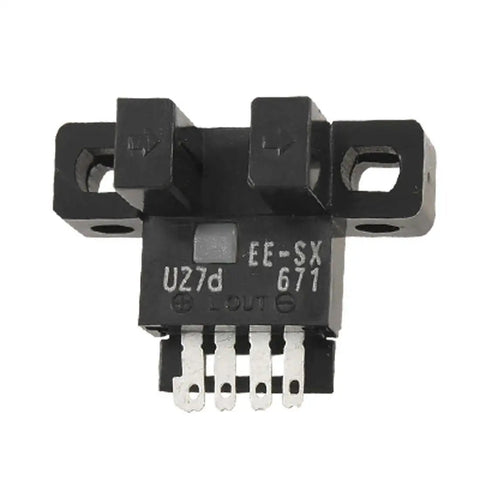

EE SX671 L Type NPN Photo Micro Photoelectric Switch With Infrared 940 Nm Pulse Modulated Light Open Collector Output DC 5 To 24 Volt 100 Milliamp Capacity Low Residual Voltage Ideal Sensor For Industrial Automation And Precision Detection

Compact L Type NPN Photo Micro Sensor SX671 with 940nm IR
✔️ 5 mm detect distance, NPN open-collector output, DC 5-24V, 100 mA

Small, compact photoelectric switch designed for precise detection in automation lines, conveyors, and packaging systems. The 940 nm infrared light with pulse modulation minimizes ambient light interference for reliable sensing in industrial environments.

✅ 940 nm infrared pulse-modulated light reduces interference
✅ Output: NPN open-collector, DC 5-24V, 100 mA max, low residual voltage
✅ Detection distance: 5 mm; standard opaque target above 2x0.8 mm
✅ Operating temp: -10 to +55 °C; plastic enclosure, 3 g weight
✅ Size: 26 x 18 x 16 mm; power consumption ~35 mA
✅ Pack: 1 x Photo Micro Sensor Switch

💡 What is a photoelectric sensor used for in automation?

Handy non-contact sensing for quick detection on conveyors and packaging lines.

- Detects small objects at close range with 940 nm infrared light - Sends a clean NPN open-collector signal for DC control up to 100 mA - Improves uptime by resisting ambient light with pulse-modulated emission
