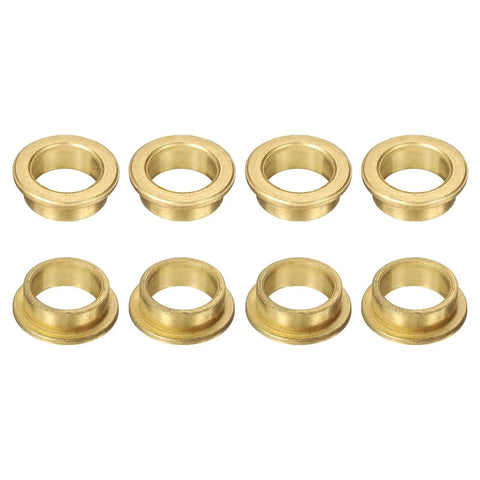

Eight Pieces Flange Sleeve Bearings 16mm Bore 20mm Outer Diameter 8mm Length Self Lubricating Sintered Bronze Bushings With 25mm Flange Diameter And 2mm Flange Thickness Suitable For Wide Temperature Ranges In Precision Machinery And Mechanisms
UPC: 00193019588741
✔️ 16x20x8 mm bore/OD/length with 25x2 mm flange, 8 pcs

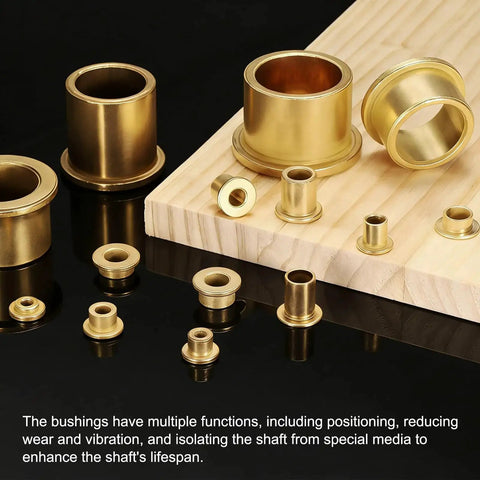

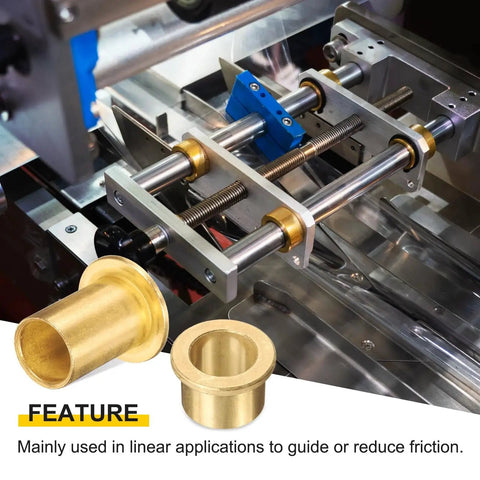

These flange sleeve bearings are self-lubricating bronze bushings designed for linear motion support and are commonly used in machines, printers, electrical equipment, and household appliances. The set provides a ready-to-install solution with a 16 mm bore, 20 mm outer diameter, 8 mm length, and a 25 mm flange to help position and stabilize shafts in linear guides and wheel assemblies. Dimensions include both metric and inch equivalents for clarity: bore 16 mm (0.63 in), OD 20 mm (0.79 in), length 8 mm (0.31 in); flange diameter 25 mm (0.98 in) with 2 mm (0.08 in) flange thickness.

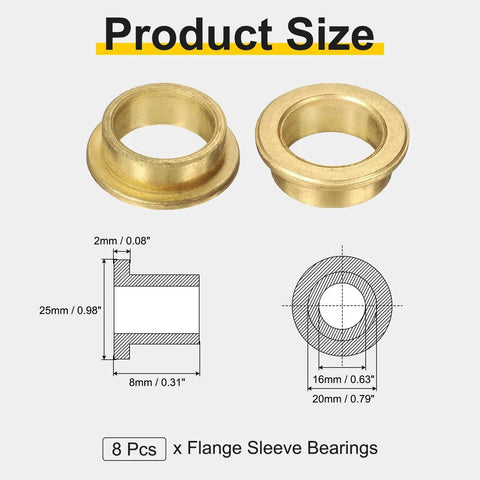

✅ Bore and dimensions: 16 mm (0.63 in) bore; 20 mm (0.79 in) OD; 8 mm (0.31 in) length; flange Ø25 mm x 2 mm

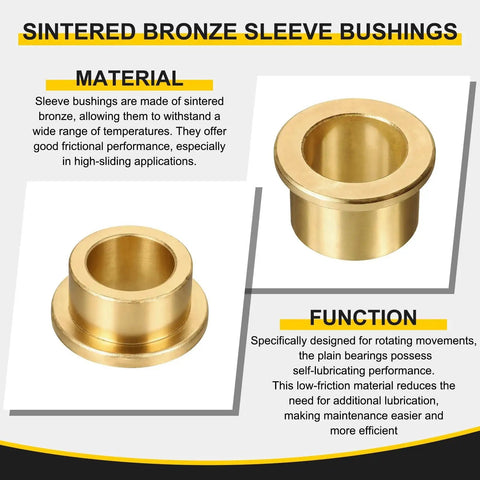

✅ Material: Sintered bronze, self-lubricating for low friction
✅ Package: 8 pieces for quick replacement and stocking
✅ Temperature range: Broad operating temperature range for durability in high-sliding applications
💡 What is a flange sleeve bearing used for in linear motion systems?
- Handy for shaft support and reducing wear in rotating assemblies - Self-lubricating bronze lowers maintenance in machinery - Great for guiding shafts in printers, electrical equipment, and household appliances
