Electric CNC Linear Stage Actuator Linear Rail 200mm Stroke Cross Sliding Table SFU1605 Ballscrew C7 Slide Module for CNC Engraving Machine

Electric CNC Linear Stage Actuator with 200mm Stroke and SFU1605 Ballscrew for CNC Engraving Machines

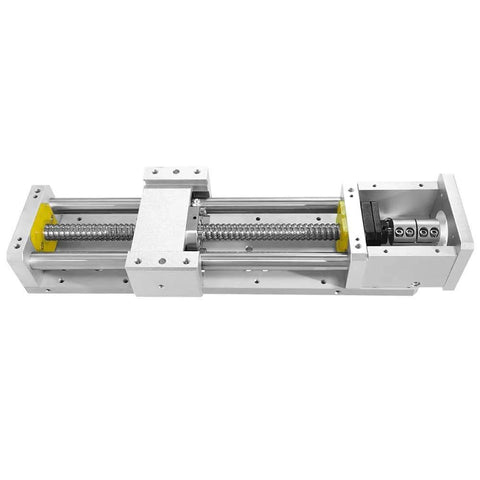

✔️ Electric CNC Linear Stage Actuator with 200mm Stroke and SFU1605 Ballscrew - Cross Sliding Table for CNC Engraving Machines (Single Unit) This compact electric CNC linear stage actuator is designed for precise, smooth motion along a single axis and is commonly used on CNC engraving machines, laser cutters, and compact milling rigs. Pack Size: 1 unit. It supports cross, vertical, and multi-axis gantry configurations, letting you build sturdy, high-precision systems with long service life.

• ✅ Stroke: 200 mm (7.87 in)
  ✅ Ball screw: SFU1605, C7 tolerance for low backlash and solid rigidity
  ✅ Drive options: handwheel, stepper, servo, AC motor, or DC motor compatible
  ✅ Rail/Slide: cross sliding table with high precision and stable guidance
  ✅ Cushion design: cushions on both ends extend sliding table life and smooth operation
  ✅ Configuration: supports cross, vertical, three-axis, and four-axis gantry setups
  ✅ Front-end: diagonal bearing seat adds stability and precision

This handy stage delivers precise, repeatable motion for engraving, milling, and measurement tasks in busy workshop environments. 💡 What is a CNC linear stage with SFU1605 ballscrew best used for in precision motion control systems? It provides a compact, rigid motion platform for accurate linear travel and repeatable positioning in CNC engraving, milling, and automation workflows. - Low backlash and repeatability enhancement thanks to SFU1605 ballscrew and C7 tolerance - Ideal for building compact gantry and multi-axis configurations - Flexible drive options enable easy integration with handwheels, steppers, or servos
