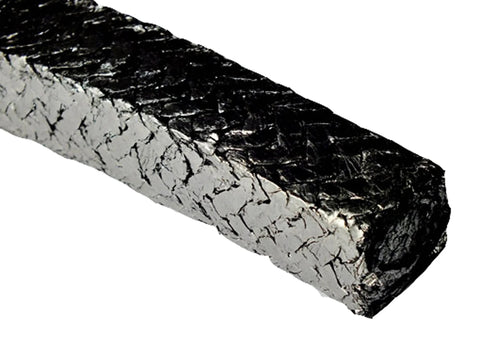

Expanded Flexible Graphite Braided Packing for Pumps and Valves, Cross Section.187 Inches, 3/16, 1 Foot Cut Length, 1100TCP-D, Self Lubricating and Chemically Inert with High Thermal Conductivity, Graphite Sealing for Gases Liquids and Steam, Black

Self-Lubricating Graphite Packing for Pumps and Valves
✔️ Cross-section 3/16 in; length 1 ft; part 1100TCP-D; high heat

This braided packing is made from pure expanded graphite and is designed for use in pumps, valves, and stuffing boxes. It offers self-lubricating, chemically inert sealing with high thermal conductivity, making it ideal for gases, liquids, steam, boiler feed water, and condensate in demanding process environments.

✅ Material: braided from pure expanded graphite with anti-corrosion additive
✅ Temperature range: -200°C to 455°C (up to 650°C in steam)
✅ Pressure range: 600 psi to 4000 psi
✅ Media compatibility: air, water, steam, ammonia, chemicals, solvents, and more
✅ Size: cross-section 3/16 in (4.76 mm); length 1 ft (304.8 mm)
✅ Pack: 1 ft cut length per piece

💡 What is expanded graphite packing used for in pumps and valves?

It's handy for sealing in high-temp, chemically active service, and general industrial use.

- Seals high-temperature joints in pumps and valves

- Provides self-lubrication to reduce shaft wear

- Resists a broad range of media with pH 0-14

- Transfers heat away from moving parts to extend life
