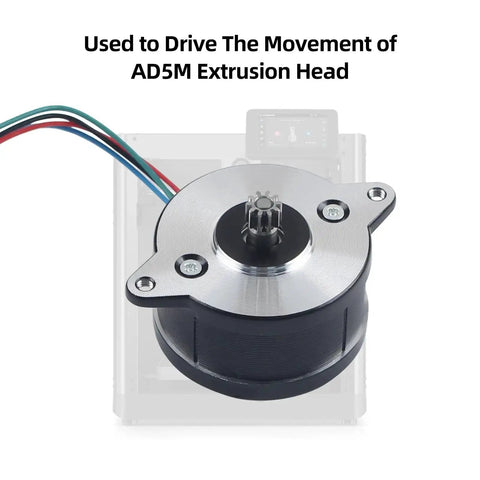

Extruder Motor Replacement For Adventuer 5M And 5M Pro Easy Drop In 36 Pancake Stepper Motor 2 Phase 1.8 Degree Step DC 2.3V 1A 10 Tooth Gear For Driving The AD5M Extrusion Head
UPC:
Drop-in 36mm extruder motor for Adventurer 5M series (1 PCS)
✔️ Direct drop-in 36×20mm stepper, 2-phase, 1.8° angle for AD5M head
The extruder motor replacement is a direct swap for the Adventurer 5M/5M Pro extrusion head when the original motor fails. This handy upgrade keeps your prints smooth and quiet during long runs by maintaining steady torque and reliable response.

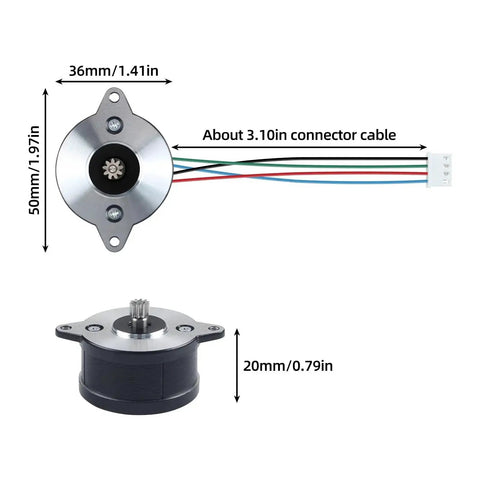

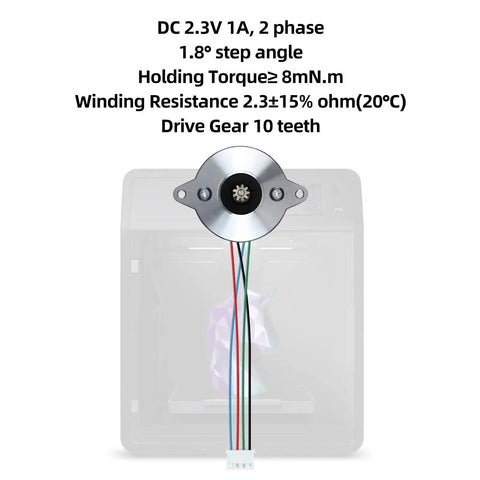

✅ Size 36×20mm (1.41×0.79 in), 2-phase, 1.8° step angle, 1A current
✅ Holding torque ≥ 8 mN.m, winding resistance 2.3±15% Ω

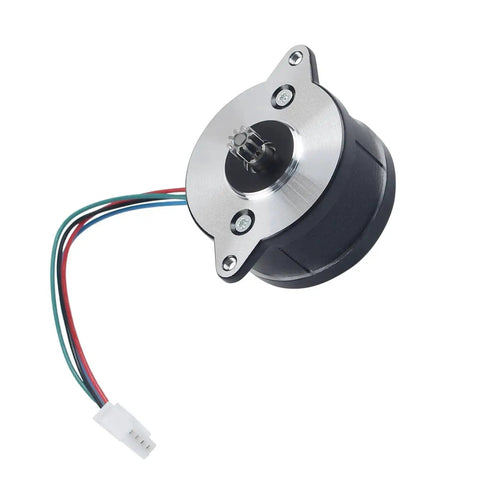

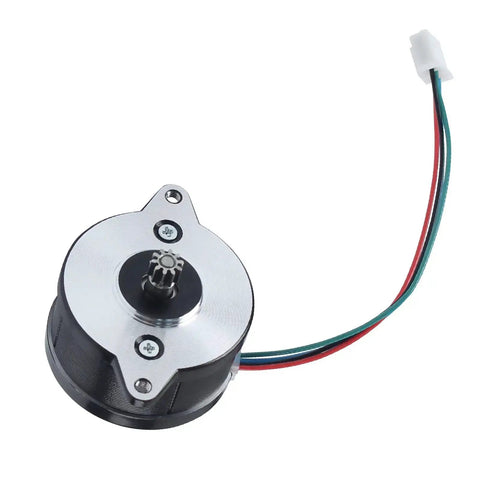

✅ 10-tooth drive gear, 3.1in connector cable
✅ Stainless steel body, built for elevated heater tolerance and low vibration

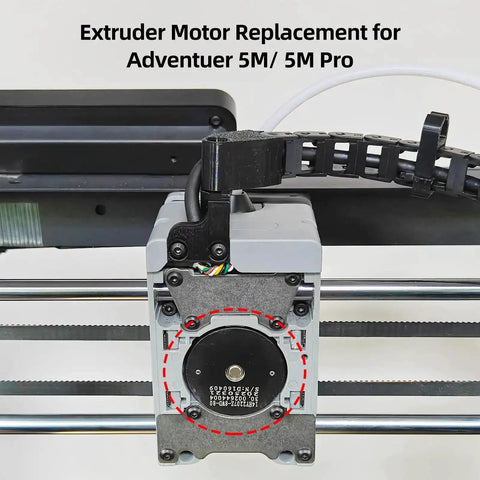

✅ Direct replacement for AD5M extrusion head, easy swap
💡 What is a drop-in extruder motor used for in 3D printers with an AD5M head?
A handy explanation: It drives filament through the hot end and supports consistent extrusion.
- It provides precise drive to feed filament through the extruder head. - It uses a 2-phase, 1.8° step angle for consistent motion control. - It is a direct replacement, enabling easy upgrades with minimal downtime. - It remains reliable under higher extrusion temps for long prints.
