FBX100-100mm Heavy CNC Linear Actuator Kit, Aluminum Alloy Fully Enclosed Linear Motion Stage Actuator Double Linear Slide Rail X Y Z Axis Linear Slide Table Linear Motion Guide for CNC
$531.08 CAD
$807.08 CADyou save $276.00 CAD
SKU: VXB0DTT94BL7
UPC: 00193019418581
UPC: 00193019418581
FBX100-100mm Heavy CNC Linear Actuator Kit with Aluminum Enclosed Linear Stage - Precision X Y Z Motion Platform for CNC Machines

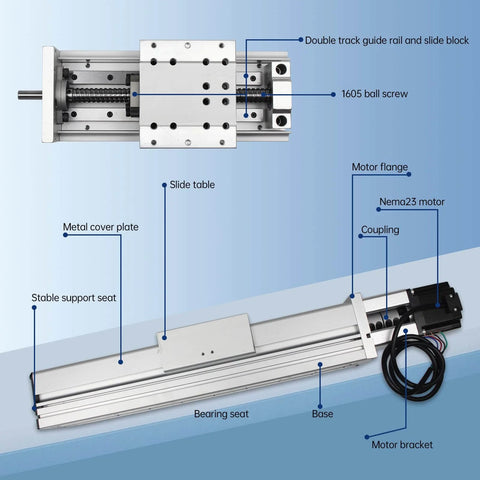

✔️ 1-kit package includes Nema23 motor, 1605 ball screw, MGN15 double-track rails, slide table, base, bearing seat, and metal cover plate for a sturdy, dust-proof CNC motion solution.

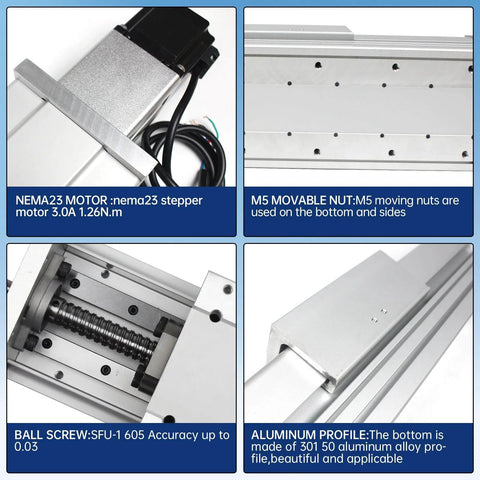

✅ Ball screw: 1605 with 5 mm lead; running speed 60-70 mm/s; positioning accuracy 0.03-0.05 mm
✅ Guides: MGN15 double-track linear rails, 15 mm rail diameter; low friction, low noise; four-point contact for high rigidity
✅ Motor: Nema23, 57 × 57 × 56 mm; torque 1.26 N·m; current 3 A; voltage 12-36 V (typical 24 V); control via pulse; speed up to 1000 RPM (within 600 RPM)
✅ Load capacity: horizontal 25 kg, bearing load 10 kg; designed for high accuracy and repeatable motion
✅ Construction: fully enclosed aluminum housing with dust-proof design; includes dust baffle and steel retainer for the slider
✅ Includes: base, stable support seat, bearing seat, slide table, and metal cover plate for easy mounting
✅ Precise positioning for milling, routing, laser engraving, and CNC routing
✅ Rigid guide system for smooth travel and reduced play in multi-axis setups
✅ Integrated components simplify installation and shorten setup time
✅ Compact, enclosed design protects components in dusty shop environments
✔️ 1-kit package includes Nema23 motor, 1605 ball screw, MGN15 double-track rails, slide table, base, bearing seat, and metal cover plate for a sturdy, dust-proof CNC motion solution.

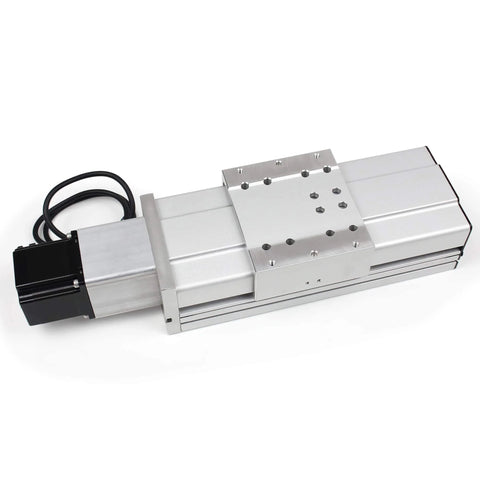

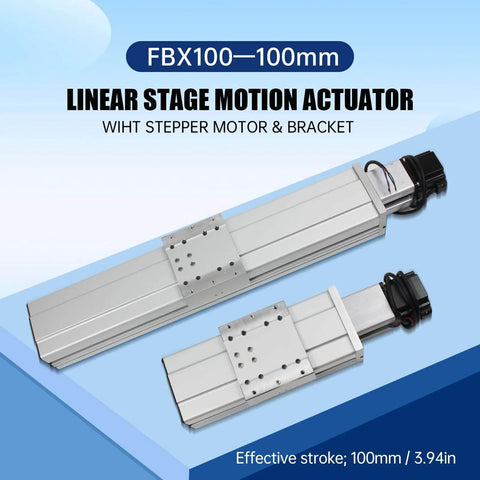

The FBX100-100mm Heavy CNC Linear Actuator Kit is a rugged aluminum-enclosed motion stage designed for precise straight-line travel in CNC machines and automated systems. It’s a handy choice for driving X, Y, and Z axes on mills, routers, laser cutters, and other fabrication tools. Pack: 1 kit.
✅ Ball screw: 1605 with 5 mm lead; running speed 60-70 mm/s; positioning accuracy 0.03-0.05 mm
✅ Guides: MGN15 double-track linear rails, 15 mm rail diameter; low friction, low noise; four-point contact for high rigidity
✅ Motor: Nema23, 57 × 57 × 56 mm; torque 1.26 N·m; current 3 A; voltage 12-36 V (typical 24 V); control via pulse; speed up to 1000 RPM (within 600 RPM)
✅ Load capacity: horizontal 25 kg, bearing load 10 kg; designed for high accuracy and repeatable motion
✅ Construction: fully enclosed aluminum housing with dust-proof design; includes dust baffle and steel retainer for the slider
✅ Includes: base, stable support seat, bearing seat, slide table, and metal cover plate for easy mounting
What is a CNC linear actuator used for in precision manufacturing and automation?
A CNC linear actuator kit provides precise, repeatable linear motion for moving tools or workpieces in automated systems.
✅ Precise positioning for milling, routing, laser engraving, and CNC routing
✅ Rigid guide system for smooth travel and reduced play in multi-axis setups
✅ Integrated components simplify installation and shorten setup time
✅ Compact, enclosed design protects components in dusty shop environments
This handy motion kit helps deliver accurate, repeatable X/Y/Z travel, boosting part consistency and overall CNC performance.
