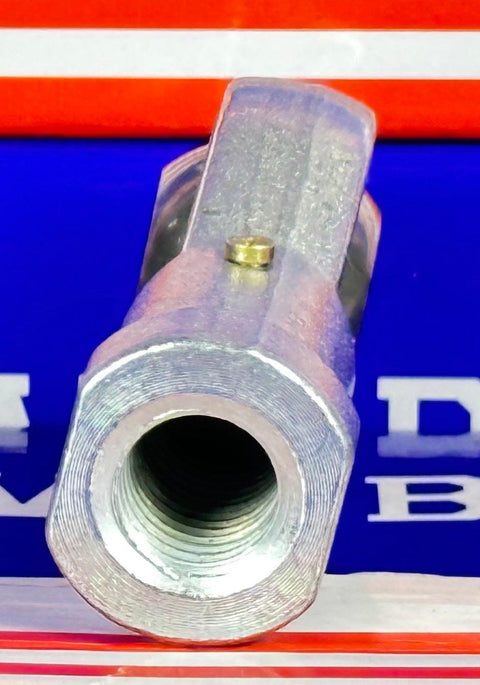

Female Rod End 14mm PHS14 Right hand Bearing


$35.24 CAD
SKU: Kit11587
UPC: 00193019207154
Item: PHS14 Bearings
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 1,710 KGF
Static load Capacity: 2,130 KGF

Female Rod End"PHS-14"
One Right Hand


One Right Hand Female Rod End PHS-14 Works with 14mm Shafts, inner diameter is 14mm, the internal thread size is M14x2, Here is the interchange designation in every brand:

  • Item: PHS14 Bearings
  • Type: Rod Ends Heim Joints Bearing
  • Quantity: One Bearing
  • Dynamic load Capacity: 1,710 KGF
  • Static load Capacity: 2,130 KGF
  • IKO: PHS14
  • ELGES: GIKFR 14 PB
  • Equal: SIKAC 14 M
  • HIRSCHMANN: SF 14


Dimensions (mm)
d Thread
S
D B B1 d1 L L1 L2 W
14 M14x2 34 13.5 19 16.9 74 57 27 22
